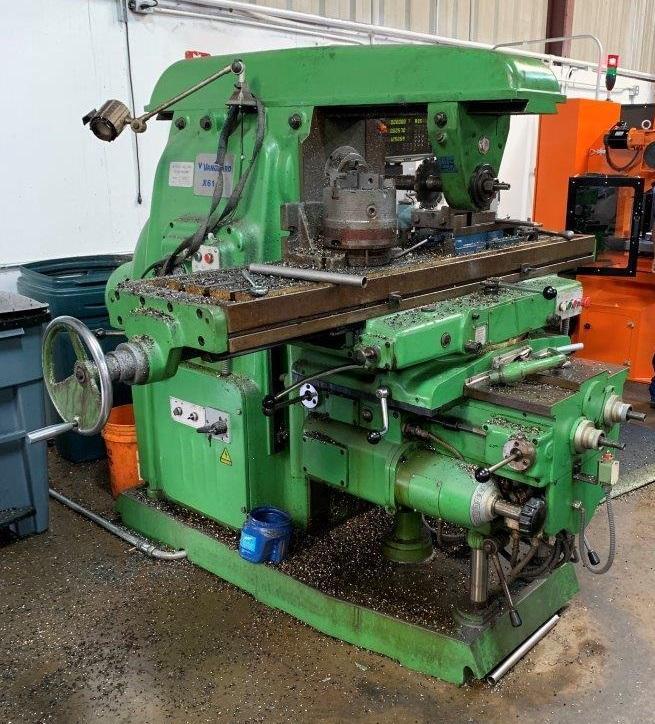

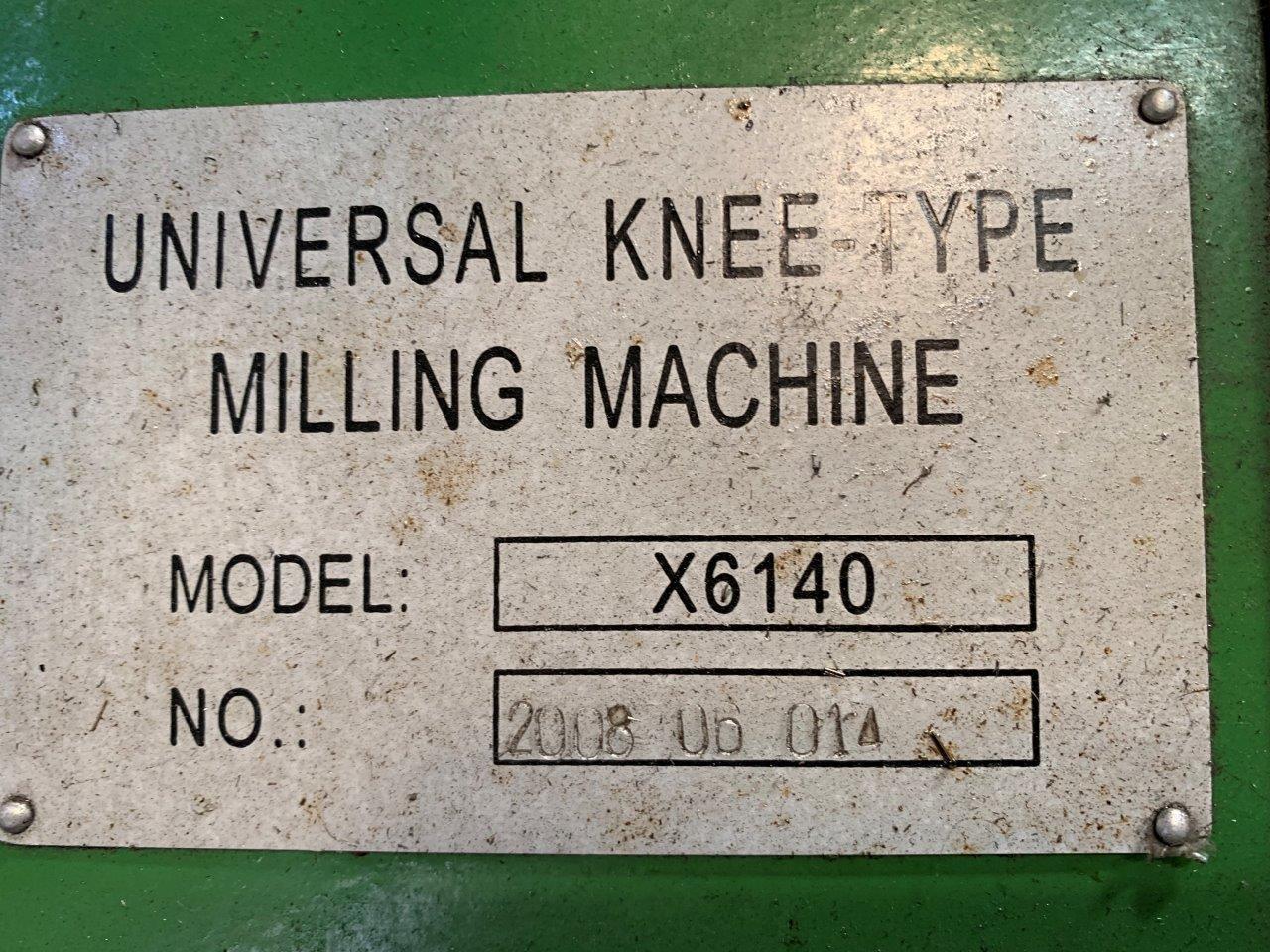

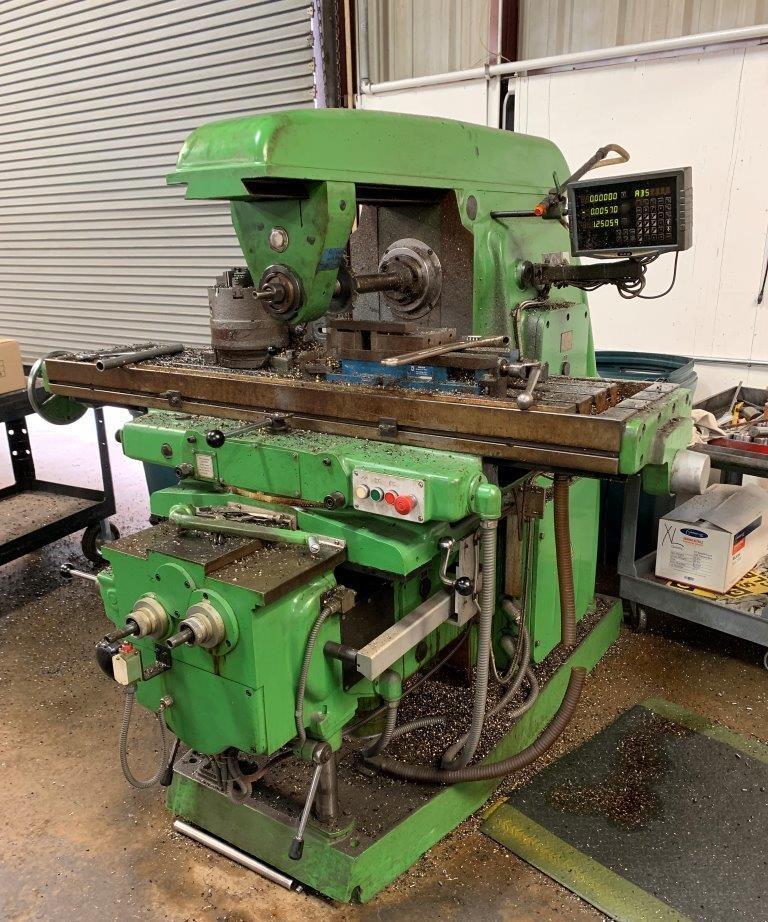

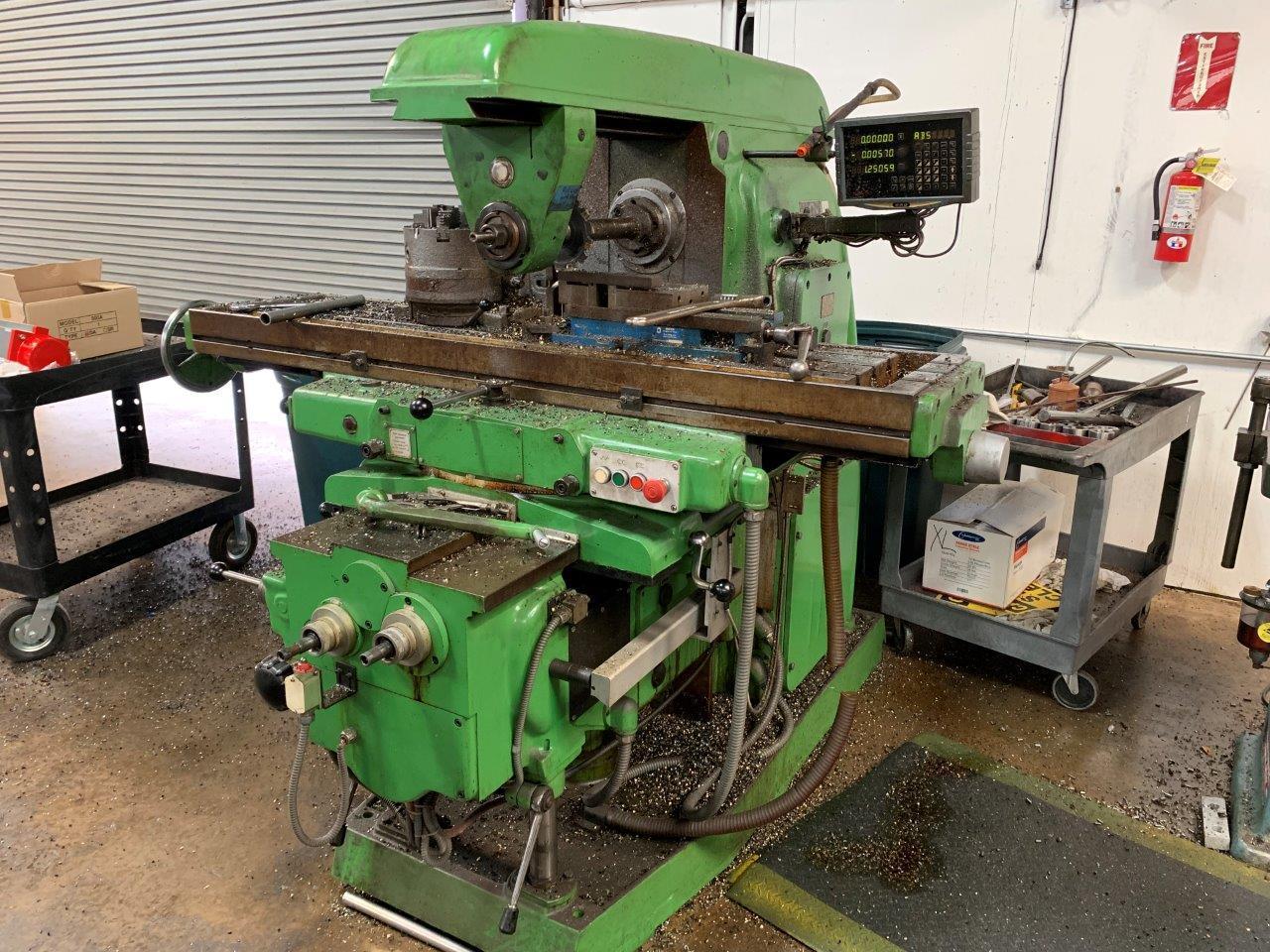

Vanguard Universal Knee Type Horizontal Milling Machine
Year: 2008

Specifications:

Table Size:  1700 mm x 400 mm
T-Slot: 3
Size (width): 18 mm
Center Distance: 90 mm
Max load of Table: 800 Kg
Max Swivel of Table: +/- 45 Degree
Longitudinal Travel (Manual/Auto): 900 mm / 880 mm
Cross Travel (Manual/Auto): 315 mm / 300 mm
Vertical Travel (Manual/Auto): 380 mm / 360 mm
Spindle Taper: ISO50
Spindle Speed/Step: 30 to 1500 RPM / 18 Steps
Table Center to Column Surface: 255 to 570 mm
Horizontal Spindle Axis to Table Surface: 30 to 410 mm
Distance from Spindle Axis to Ram Surface: 190 mm
Ram Travel: 700 mm
Longitudinal/Cross Feeds: 23.5 to 1180 mm / min (18 Steps)
Vertical Feeds: 8 to 394 mm / min (18 Steps)
Longitudinal/Cross Rapid Speed: 2300 mm / min
Rapid Traverse Vertical: 770 mm / min
Main Motor: 11 Kw
Feed Motor: 3 Kw
Coolant Motor: 0.125 Kw

Equipped With:

3-Axis DRO System
Horizontal Spindle with Arbor Support
Power Feeds in all Three Axes
Universal Swiveling Table
Coolant Pump and Piping

Package Dimensions (cm):  240 x 220 x 225
Overall Dimensions (cm):  2556 x 2159 x 1770
N/W,G/W: 3850 Kg / 4200 Kg
