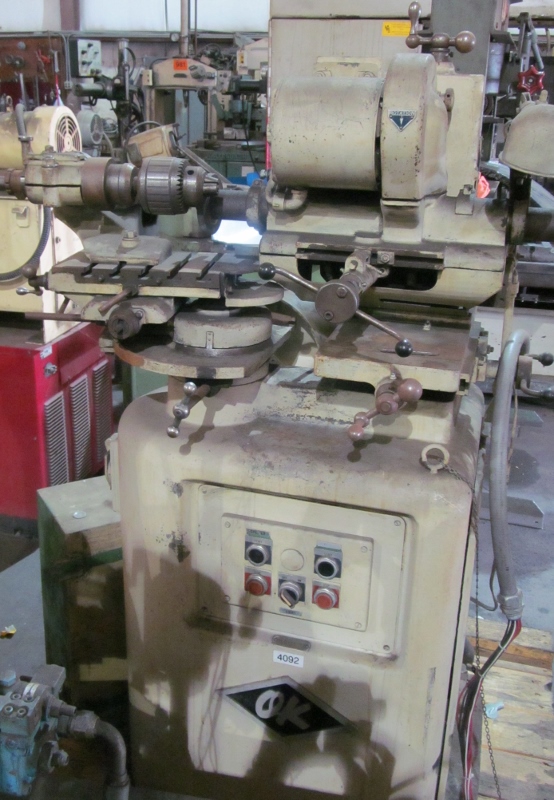

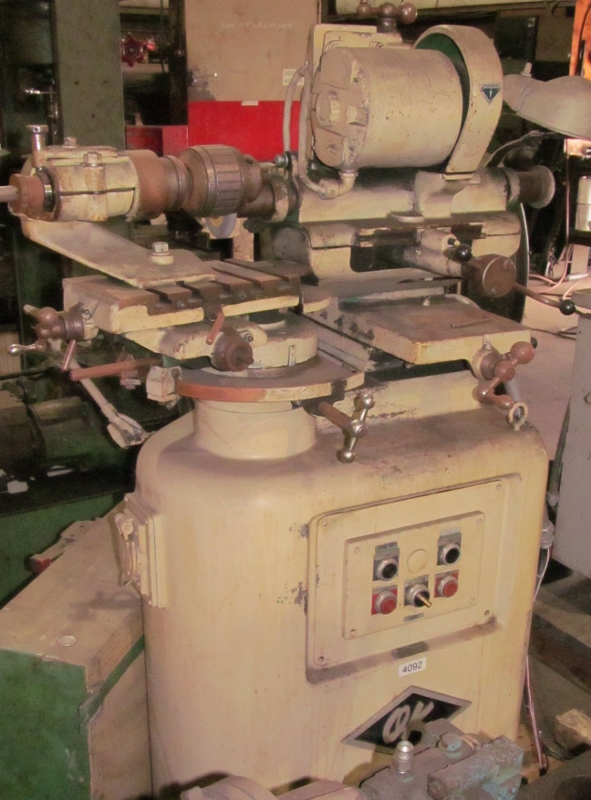

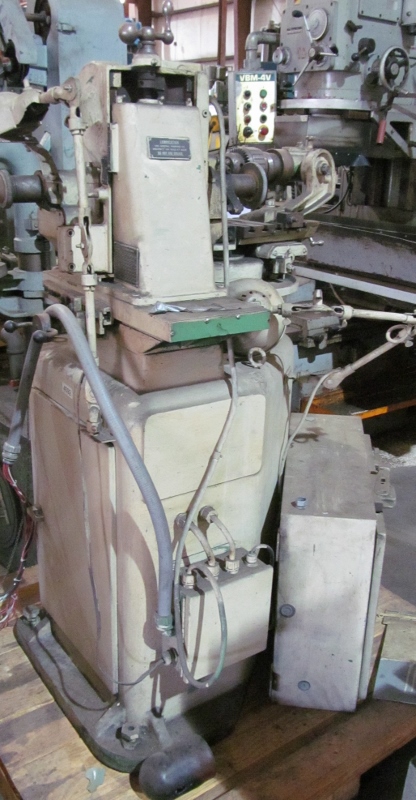

O.K. Tool Radius/Ball Nose Grinder
Brand
OK
Model
Type
Grinders, Tool & Cutter
Stock #
089979
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
O.K. Tool Radius/Ball Nose Grinder
Specifications:
Max Length of Flute with Standard Machine: 4-1/2"
Max Mill Diameter Over Table: 9-1/2" (With #9 B&S Spindle)
Max Mill Diameter in Front of Table: 12" (With #9 B&S Spindle)
Axial Travel: 4-1/2"
Vertical Adjustment: 5-3/8"
Cross Travel: 6-1/4"
By Rack & Pinion Feed; 4"
By Screw Feed for Fine Adjustment: 2-1/4"
Work Table Size: 6-7/16" x 10-7/8"
Graduated Swivel Range: 210 Degrees
Adjustment Toward & From Swivel Center: 3-1/4"
Cross Adjustment: 1-1/4"
Cutter Head Angular Range:
Tilting of Cutter Head (Each Way): 20 Degrees
Wheel Spindle Speed: 5,000 RPM
Spindle Drive Motor: 1/3 HP, 3/60/460V
Equipped With:
Workhead
Approx Weight: 1,000 lbs
