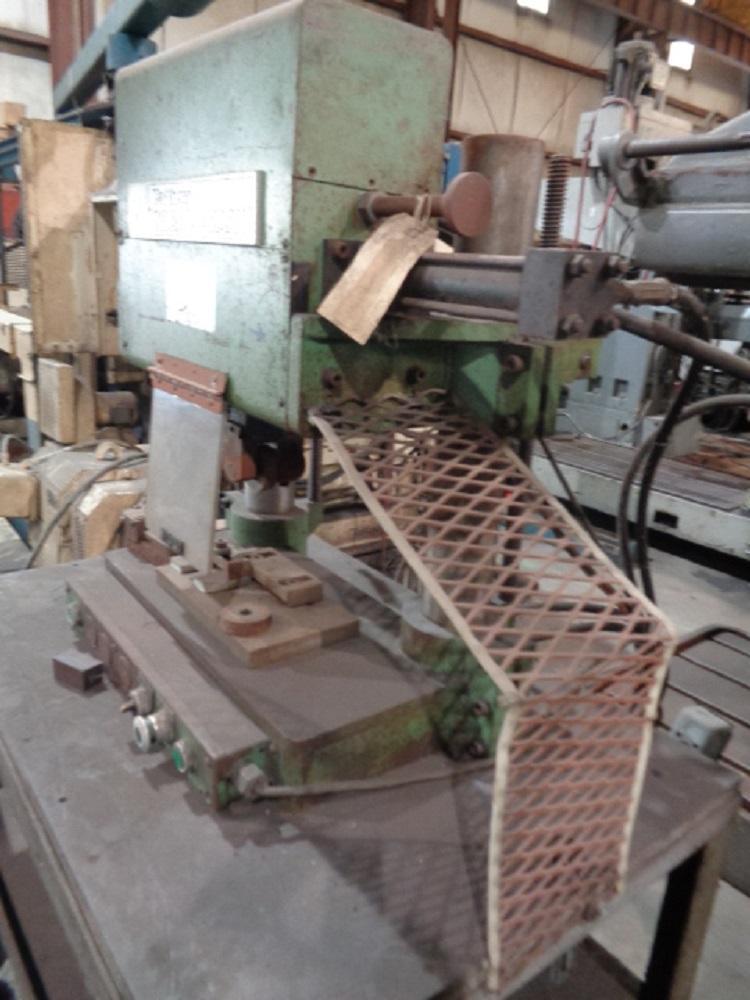

Matthews Indent-A-Mark Model 2091 Marking Machine
Brand
MATTHEWS
Model
2091
Type
Marking Machines
Stock #
0110341
Condition
Used
Year
1989
Location
Houston, Texas
United States
Specifications
Equipped With
Matthews Indent-A-Mark Model 2091 Marking Machine

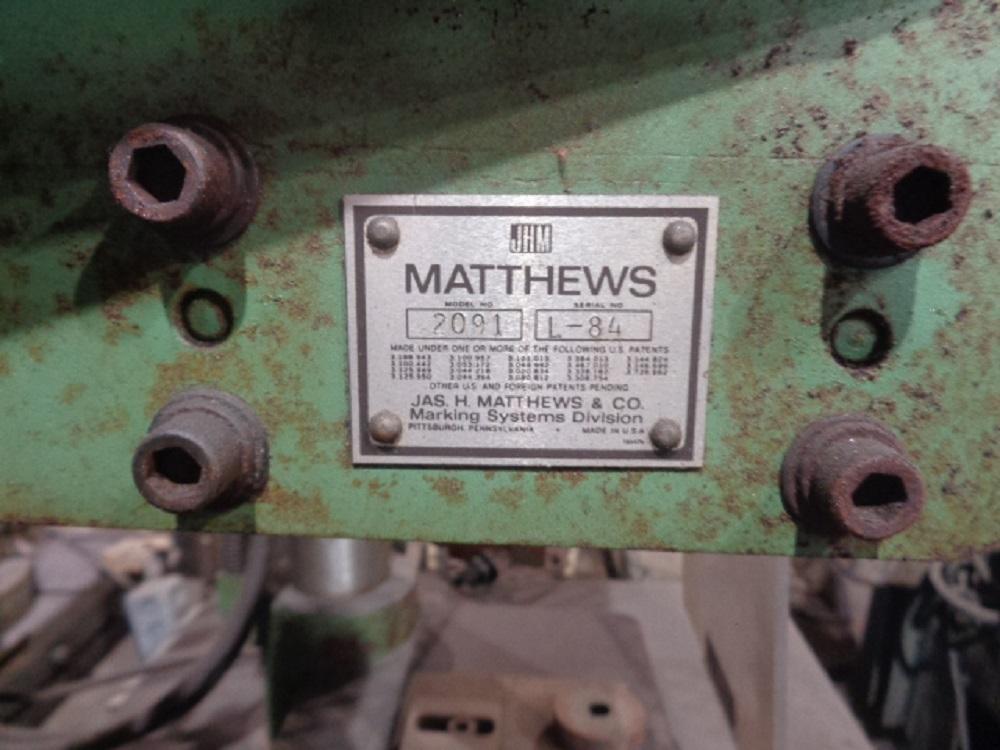

S/N: L-84
SPECIFICATIONS:
Marking Force............700 lbf to 5,000 lbf (317.5 to 2,268 kgf)
Cross Slide............0.5" to 6" (12.7 to 152.4 mm)
Ram Stroke............0.125" to 1" (3.18 to 25.4 mm)
Throat Height
Ram Down/Head Down............0.5" (12.7 mm)
Ram Up/Head Up............18" (457.2 mm)
Throat Width............13.5" (342.9 mm) Between Uprights
Marking Table Size............24" Wide x 8" Deep (609.6 x 203.2 mm)
Marking Table Bolt Pattern............4" x 6" (101.6 x 152.4 mm)
Cycle Rate..... 43 CPM at a 1" (25.4 mm) Stroke & 700 lbf (317.5 kgf)
35 CPM at a 1" (25.4 mm) Stroke & 5,000 lbf (2,267.96 kgf)
Electrical.........220/440 VAC, 3 PH, 60 Hz
Motor............1.5 HP, 1,725 RPM (1.52 HP, Metric)
Pump............1.5 GPM (5.68 LPM)
Fluid Reservoir............5 Gallon (18.93 Liter)
S/N: L-84
SPECIFICATIONS:
Marking Force............700 lbf to 5,000 lbf (317.5 to 2,268 kgf)
Cross Slide............0.5" to 6" (12.7 to 152.4 mm)
Ram Stroke............0.125" to 1" (3.18 to 25.4 mm)
Throat Height
Ram Down/Head Down............0.5" (12.7 mm)
Ram Up/Head Up............18" (457.2 mm)
Throat Width............13.5" (342.9 mm) Between Uprights
Marking Table Size............24" Wide x 8" Deep (609.6 x 203.2 mm)
Marking Table Bolt Pattern............4" x 6" (101.6 x 152.4 mm)
Cycle Rate..... 43 CPM at a 1" (25.4 mm) Stroke & 700 lbf (317.5 kgf)
35 CPM at a 1" (25.4 mm) Stroke & 5,000 lbf (2,267.96 kgf)
Electrical.........220/440 VAC, 3 PH, 60 Hz
Motor............1.5 HP, 1,725 RPM (1.52 HP, Metric)
Pump............1.5 GPM (5.68 LPM)
Fluid Reservoir............5 Gallon (18.93 Liter)
