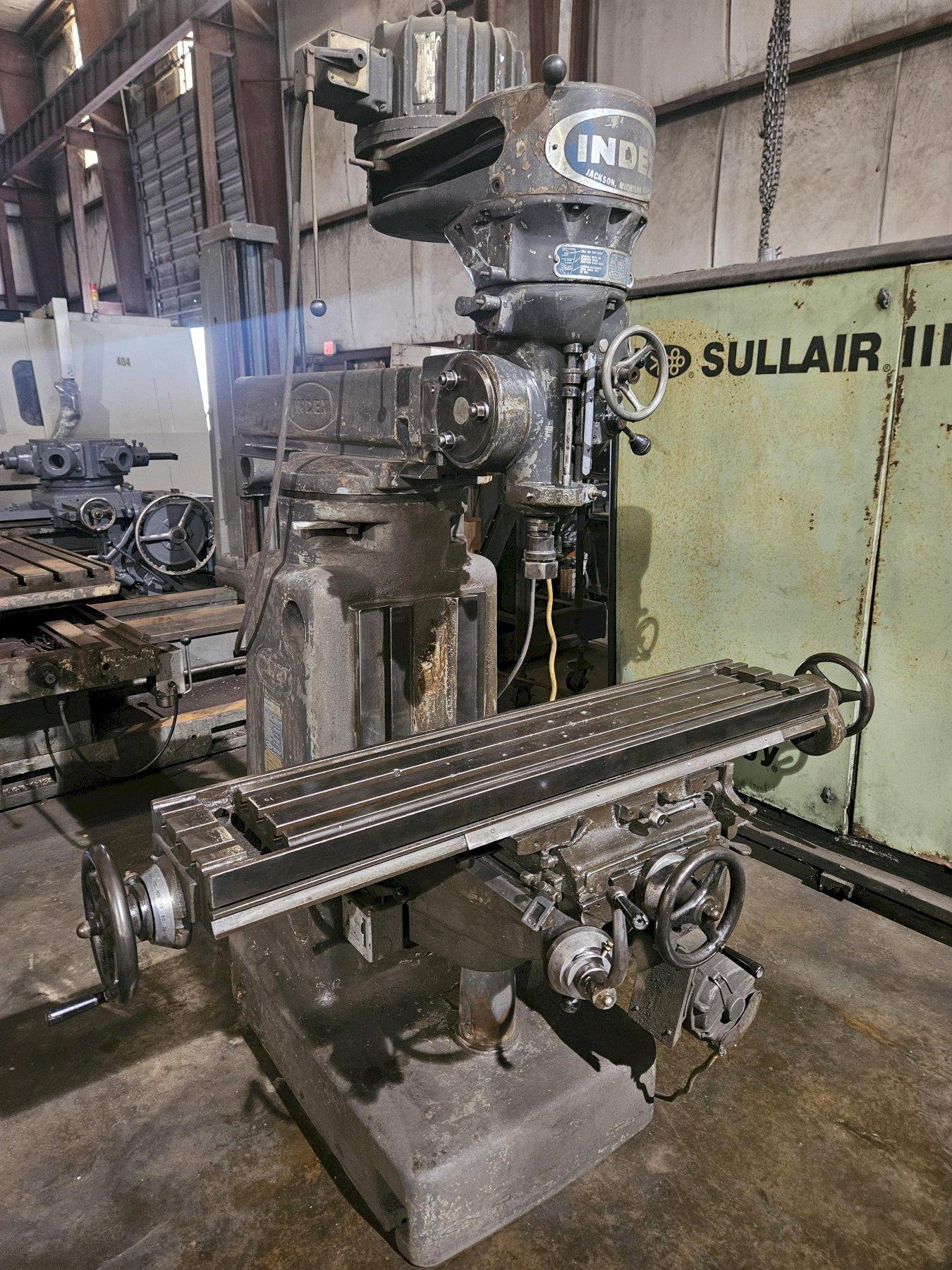

Index Model 845 Mill
S/N: 14696

Specifications:

Overall Table Size: 9" x 46"
Longitudinal Travel: 32"
Cross Travel: 12"
Vertical-Knee Travel: 18"
Quill Travel: 5-1/4"
Overarm Travel: 30"
Throat Dimensions:
     Center of Spindle to Column Face: Min - 2-1/2" Max - 28"
     Center of Table to Column Face: Min - 6" Max 18-3/8"
     Spindle Nose to Top of Table: Min - 0" Max - 18"
Turret and Overarm, around Column: Rotation 360 Degrees
Head Tilt (Front to Back): 45 Degree - 0 - 45 Degree
Head Tilt (Side to Side): 180 Degree - 0 - 180 Degree
Spindle Taper: #9 B & S with 1/2" Draw Bar
Spindle Speeds (8):
     Back Gear Drive: 75, 125, 210, 355 RPM
     Direct Belt Drive: 600, 1000, 1675, 2850 RPM
Reverse: Yes
Quill Outside Diameter: 3-3/8"
Quill Feeds (3): 0.0015", 0.003" , 0.006" IPR
Spindle Motor: 2 HP
Table Feed Motor: 1/4 HP
Rapid Traverse Motor: 1/4 HP
Longitudinal Table Power Feeds (8): 3/4" , 1-1/8", 1-3/4", 2-3/8", 3-5/8", 4-3/4", 7-1/4", 9-1/2"

Base Dimensions:
     Front to Back: 37"
     Left to Right: 24"
Floor Space:
     Front to Back: 76"
     Left to Right: 98"
Height Overall: 81"
Shipping Weight (approx.): 2600 lbs.
