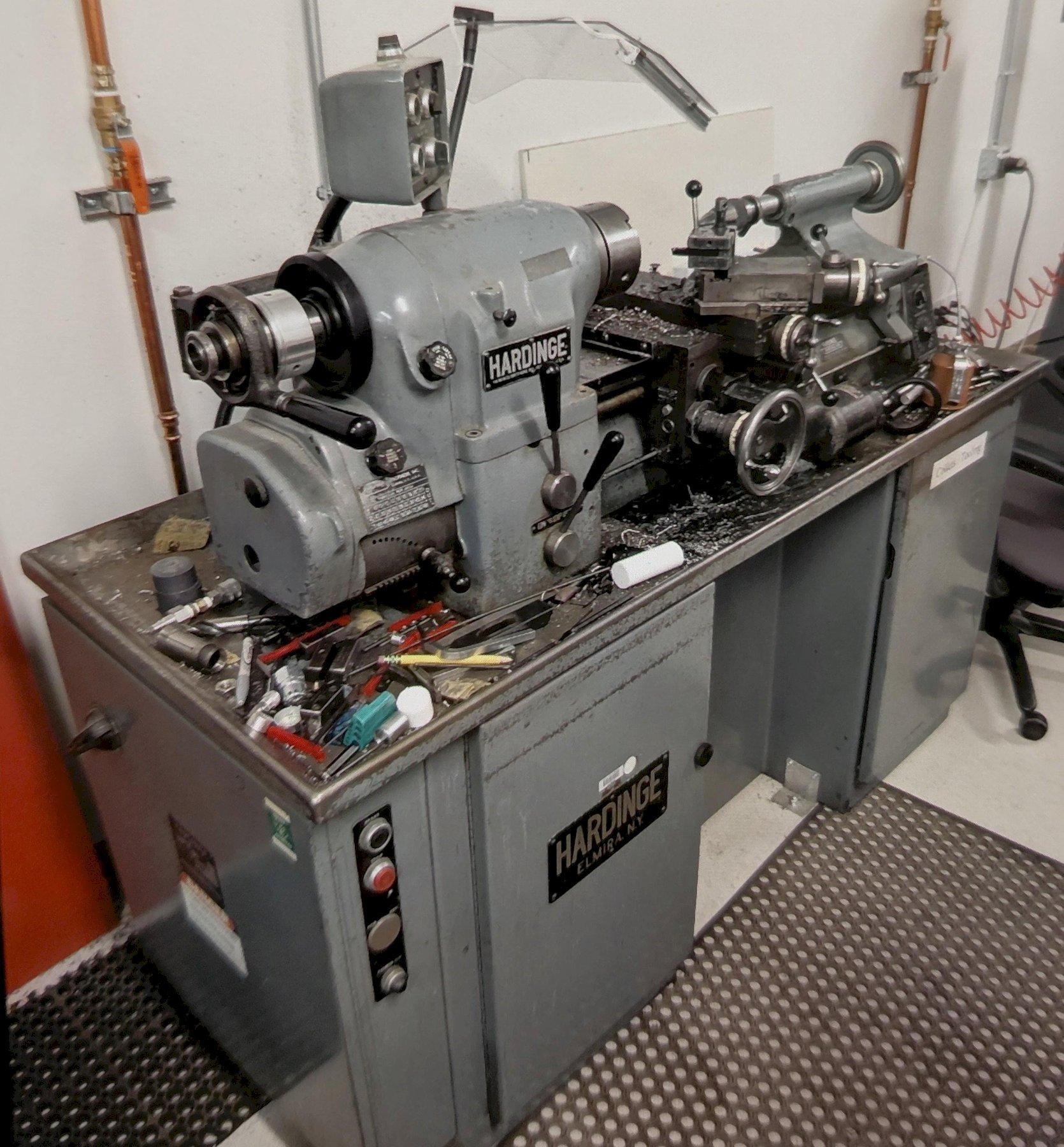

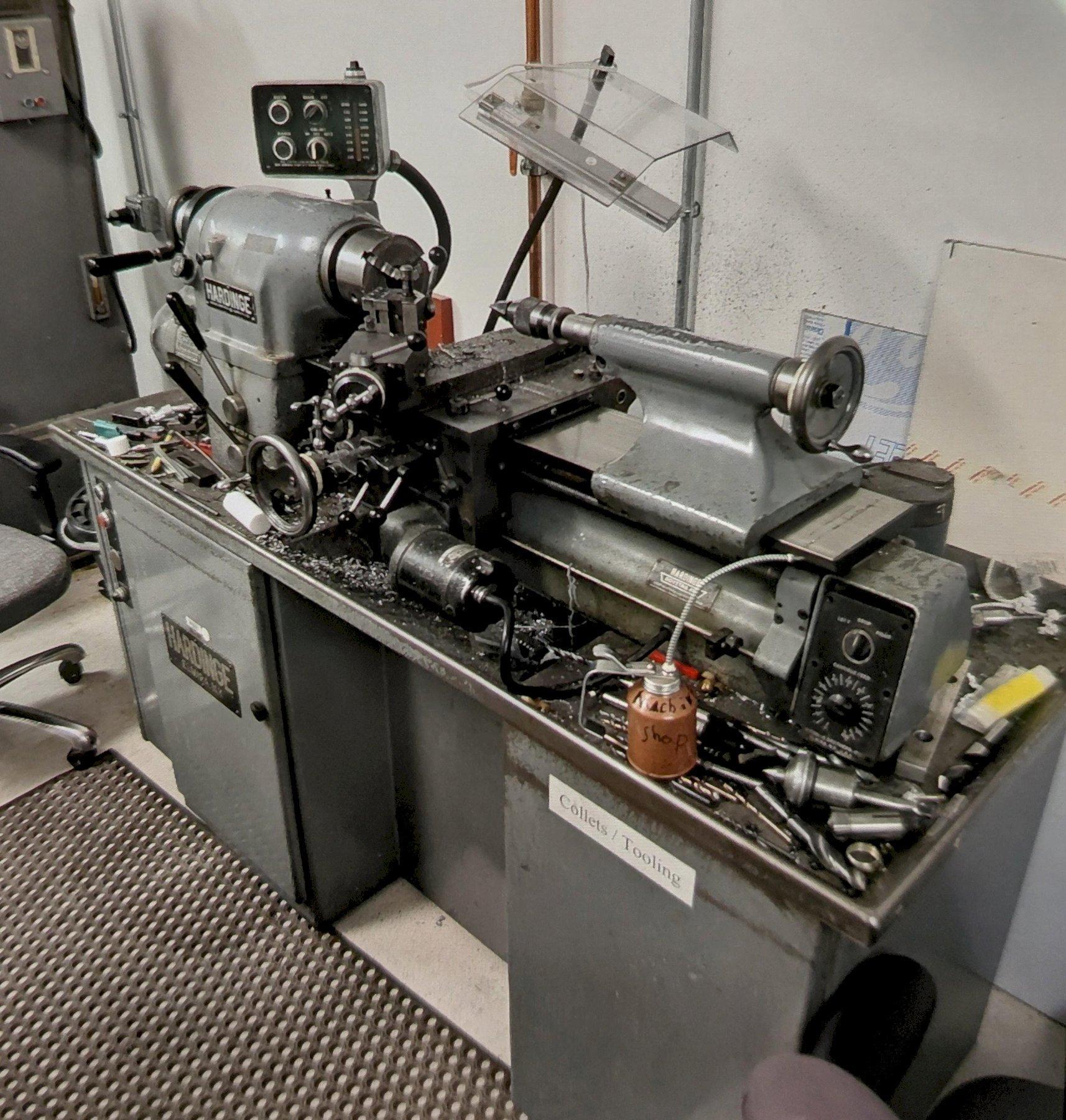

Hardinge Model HLV-H Super Precision Toolroom Lathe
Brand
HARDINGE
Model
HLV-H
Type
Lathes, Precision
Stock #
0810613
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
| Dimensions | 71" L x 38" W x 65" H |
| Weight | 2000 pounds |
Equipped With
Hardinge Model HLV-H Super Precision Toolroom Lathe
S/N: 6013M
Specifications:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Swing Over Carriage: 9"
Distance between Centers: 18"
Spindle Capacity (5C Collets): 1-1/16" round stock
Spindle Nose: 4 Degree Tapered Nose
Thru Hole: 1-1/4"
Spindle Speed: 125 to 3000 RPM, Variable
Carriage Power Feed Range: 1/4" to 7" per minute
Cross Slide Power Feed Range: 1/8" to 3-1/2"per minute
Tailstock Taper: No 2 Morse Taper
Tailstock Travel: 3-3/4"
Main Motor: 1.5 HP, 2-Speed Layout
Equipped With:
Collets Closure
Taper Attachment
Misc Tooling
S/N: 6013M
Specifications:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Swing Over Carriage: 9"
Distance between Centers: 18"
Spindle Capacity (5C Collets): 1-1/16" round stock
Spindle Nose: 4 Degree Tapered Nose
Thru Hole: 1-1/4"
Spindle Speed: 125 to 3000 RPM, Variable
Carriage Power Feed Range: 1/4" to 7" per minute
Cross Slide Power Feed Range: 1/8" to 3-1/2"per minute
Tailstock Taper: No 2 Morse Taper
Tailstock Travel: 3-3/4"
Main Motor: 1.5 HP, 2-Speed Layout
Equipped With:
Collets Closure
Taper Attachment
Misc Tooling
