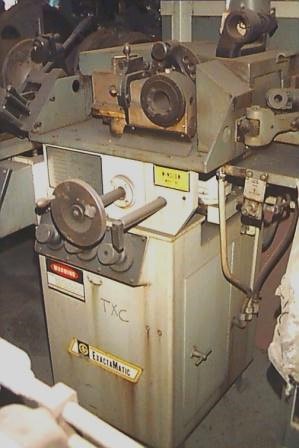

G&L EXACTAMATIC DRILL-POINT GRINDER
Brand
GIDDINGS & LEWIS
Model
Winslow HC
Type
Grinders, Drill
Stock #
018351
Condition
Used
Year
1981
Location
HOUSTON, Texas
United States
Specifications
Equipped With
G & L Exactamatic Drill-Point Grinder
Model Winslow HC
Specifications:
Drill Capacity:
Conventional Point: 1/16" to 1/5" Diameter
Helical Point: 1/16" to 1.0" Diameter
Racon Point: 1/16" to 1.0" Diameter
Split Point: 1/16" to 0.5" Diameter
Four-Facet Point: 1/16" to 1.0" Diameter
Grinding Wheel: 2" X 3/4" X 5" Horizontal Mount
Motors:
Spindle: 1 HP; 1800 RPM; 230/460 V; 60 Hz; 3 PHASE
Workhead: 1/4 HP; 1800 RPM; 60 Hz; 3 PHASE
Coolant: 1/8 HP; 3450 RPM; 110 VOLTS; SINGLE PHASE
Equipped With:
handles all types of 2 flute, right-hand or left-hand drills
drill point included angles from 90 to 140 degrees
lip clearance angle adjusted by control on console
built in cam for precision wheel dressing
Weight 1100 lbs
Floor Space 50" x 39"
