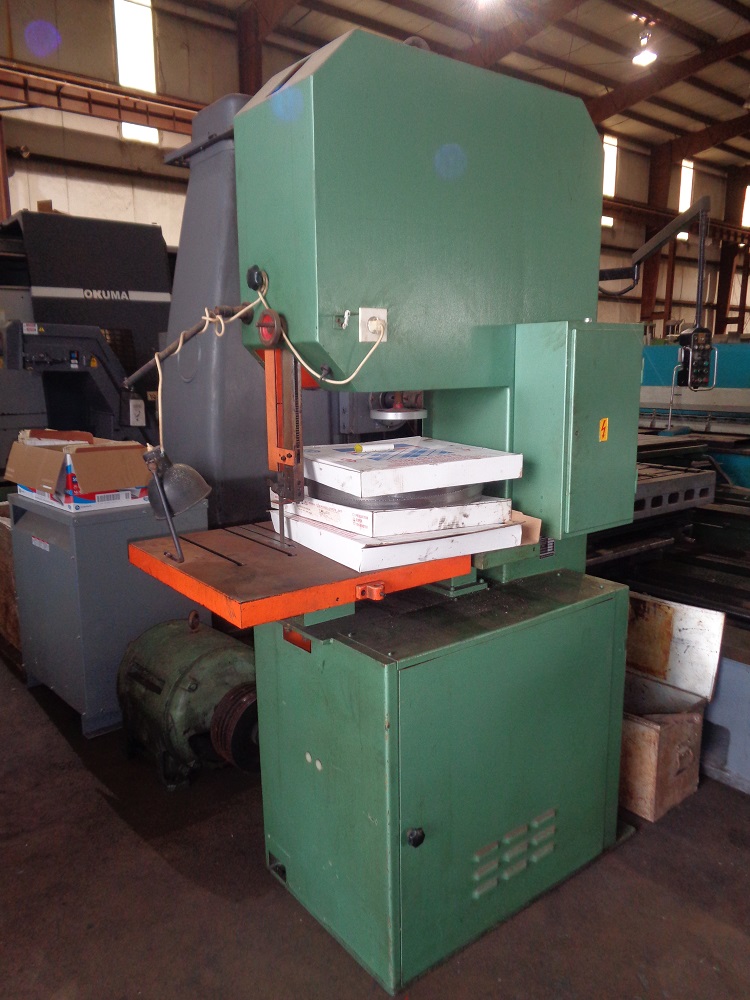

Dake Johnson Vertical Bandsaw Model V-24
Brand
DAKE JOHNSON
Model
V-24
Type
Saws, Band, Vertical
Stock #
0110274
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
Dake Johnson Model V-24 Vertical Bandsaw
S/N: 188118
Specifications:
Blade Width: 5-16" to 1"
Blade Length: 183"
Blade Speed
Low Range: 50 to 425 FPM
High Range: 425 to 4250 FPM
Worktable Travel Distance: 10" Manual Feed
Band Wheels Number: 2
Band Wheel Size: 24-1/2"
Throat Size: 23"
Max Work Height: 13"
Work Table Dimensions: 26-3/8" x 26-3/8"
Work Table Tilt: 10 Degrees Left / 30 Degrees Right
Work Table Height: 42"
Machine Height: 90"
Power: 220V / 3Ph
Approx Weight: 2,000 LBS
Equipped With:
Blade Tension Indicator
Blade Welder
Blade Speed Indicator
Work Light
