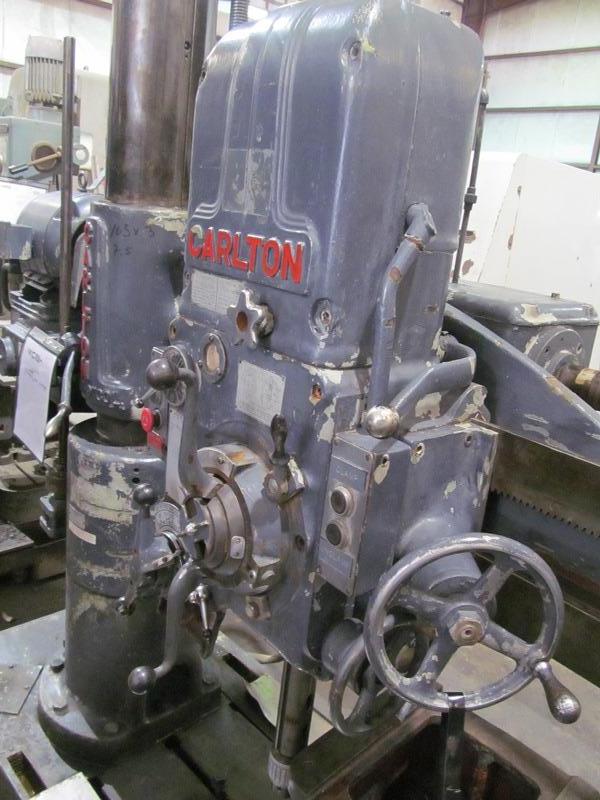

Carlton 3'9" Radial Arm Drill
Brand
CARLTON
Model
Type
Drills, Radial
Stock #
019795
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
Carlton 3' 9" Radial Drill Press
Specifications:
Arm Length: 36"
Column Diameter: 9"
Max Height Under Arm: 48"
Spindle Speeds (12): 30 TO 1500 RPM
Feeds: .004 TO .025 IPR
Spindle Diameter: 2-1/2"
Spindle Taper: #4 MT
Spindle Travel: 12"
Travel of Arm on Column: 28"
Travel of Head on Arm: 29"
Distance, Spindle to Base: 28" MIN.
56" MAX.
Distance, Spindle to Column: 9" MIN
36" MAX.
Base Size: 31" X 39-1/2"
Base Height: 6"
Motor: 5 HP
Equipped With:
Box Table
Power Clamping
Power Elevation
Coolant Pump
