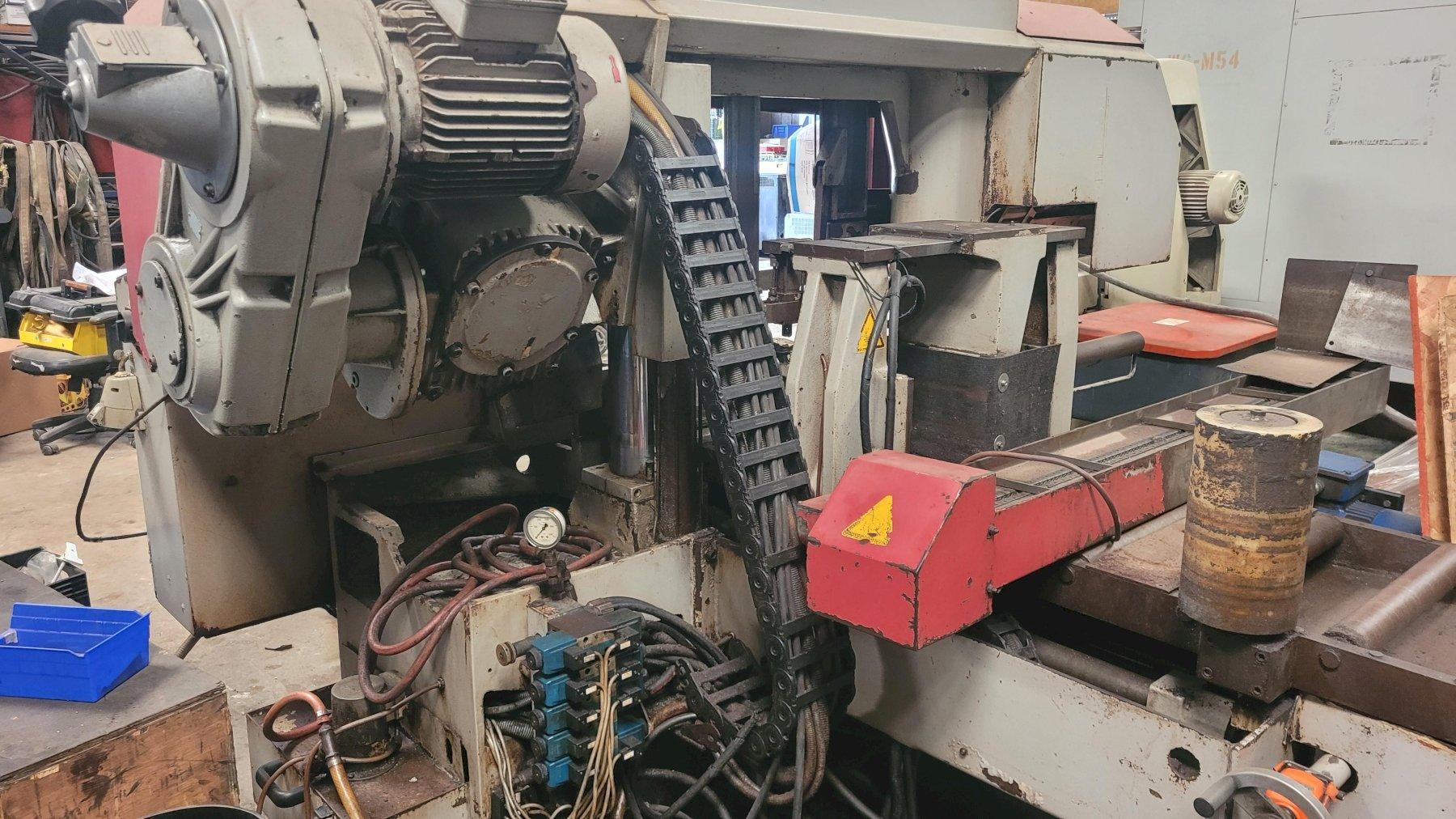

Behringer HBP-430 Dual Column Horizontal Band Saw
Brand
BEHRINGER
Model
HBP-430A
Type
Saws, Band, Horizontal, Dual Column
Stock #
0810607
Condition
Used
Year
1999
Location
Houston, Texas
United States
Specifications
| Dimensions | 119" x 87"x 80" |
| Weight | 7500 pounds |
Equipped With
Behringer HBP-430 Dual Column Horizontal Band Saw

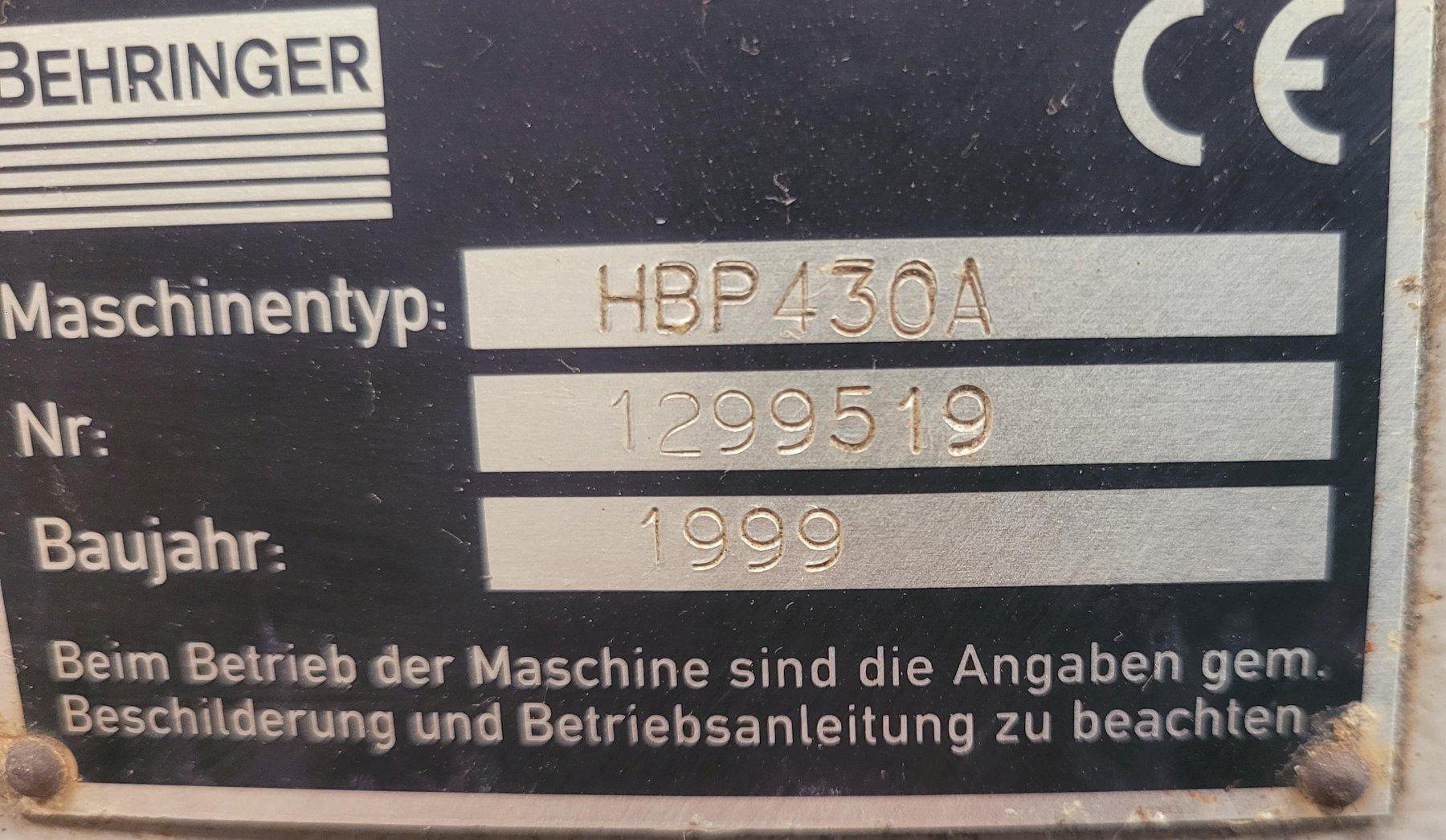

S/N: 1299519
Specifications:
Cutting Capacity (Round): 17"
Cutting Capacity (Rectangle): 17" x 17"
Saw Blade Dimensions: 19'0" x 2" x .063"
Working Height: 27.6"
Drive Motor Power: 7.4 HP
Blade Speed Range: 65 - 426 SFM
Stroke Feed Length: 23.6"
Max Feed Length: 212.6"
Band Wheel Diameter: 24.8"
Diameter of Columns: 5.9"
Equipped With:
Hydraulic Blade Guide Clamping
Automatic Movable Guide Arm Positioning
NC Control with 10 Program Capacity
Carbide Blade Guides
S/N: 1299519
Specifications:
Cutting Capacity (Round): 17"
Cutting Capacity (Rectangle): 17" x 17"
Saw Blade Dimensions: 19'0" x 2" x .063"
Working Height: 27.6"
Drive Motor Power: 7.4 HP
Blade Speed Range: 65 - 426 SFM
Stroke Feed Length: 23.6"
Max Feed Length: 212.6"
Band Wheel Diameter: 24.8"
Diameter of Columns: 5.9"
Equipped With:
Hydraulic Blade Guide Clamping
Automatic Movable Guide Arm Positioning
NC Control with 10 Program Capacity
Carbide Blade Guides
