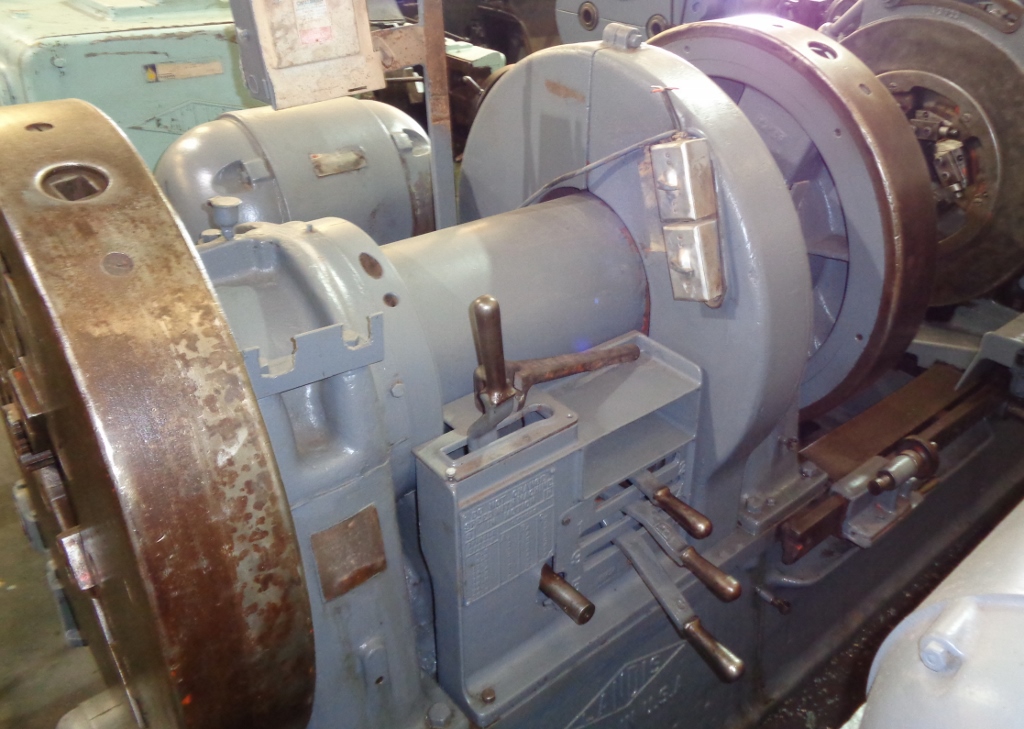

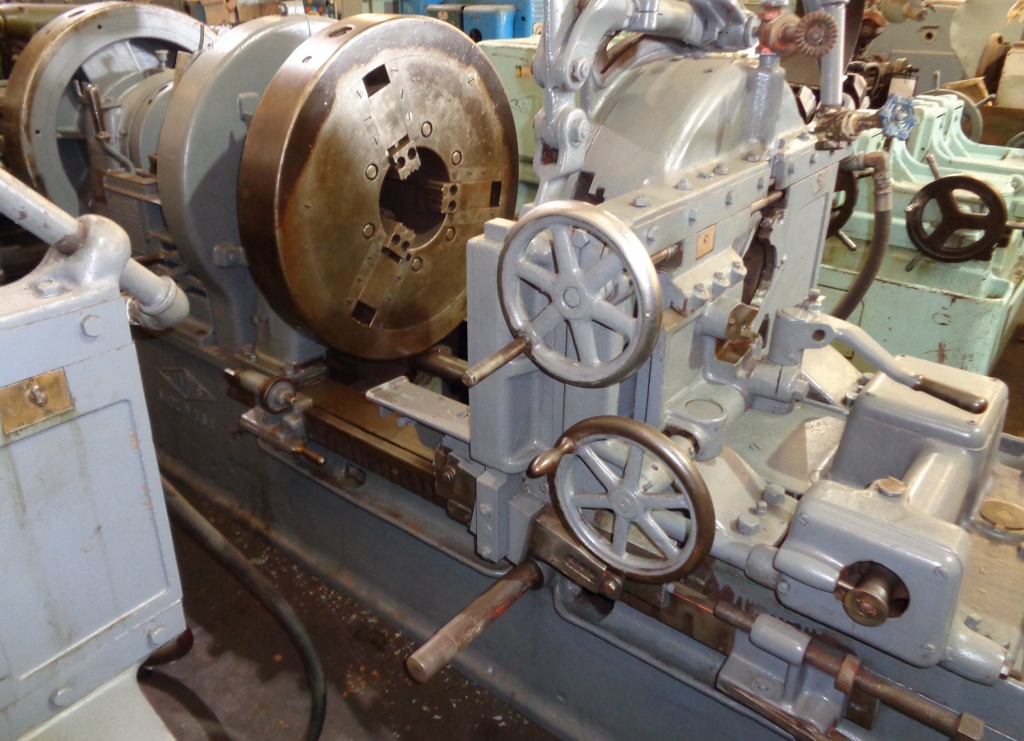

8-5/8" Landis Receding Die Head Threader
Brand
LANDIS
Model
Type
Threaders, Receding Die Head
Stock #
0110152
Condition
Used
Year
Location
HOUSTON, Texas
United States
Specifications
Equipped With
8-5/8" Landis Receding Die Head Threader
S/N:
Specifications:
Capacity:
Standard: 4-1/2" to 8-5/8" O.D.
Auxillary Chaser Holders: 2-7/8" to 4-3/4" O.D.
Maximum Thread Length: 6"
Driving Pulley:
Diameters: 14" for 5" Belt
Speed: 300 RPM
Spindle Speeds:
Number of Speeds: 8
Minimum RPM of Chuck: 8.3
Maximum RPM of Chuck: 28.5
Maximum Carriage Travel: 24"
Motor:
Size: 10 HP
Approx Speed: 1200 RPM
Equipped With:
Receding Chaser Die Head
Reamer
Taper Attachment
Coolant Pump
Pitch Indicator
Approx Weight: 13,100
Approx Dimensions: 129" x 74" x 75"
S/N:
Specifications:
Capacity:
Standard: 4-1/2" to 8-5/8" O.D.
Auxillary Chaser Holders: 2-7/8" to 4-3/4" O.D.
Maximum Thread Length: 6"
Driving Pulley:
Diameters: 14" for 5" Belt
Speed: 300 RPM
Spindle Speeds:
Number of Speeds: 8
Minimum RPM of Chuck: 8.3
Maximum RPM of Chuck: 28.5
Maximum Carriage Travel: 24"
Motor:
Size: 10 HP
Approx Speed: 1200 RPM
Equipped With:
Receding Chaser Die Head
Reamer
Taper Attachment
Coolant Pump
Pitch Indicator
Approx Weight: 13,100
Approx Dimensions: 129" x 74" x 75"
