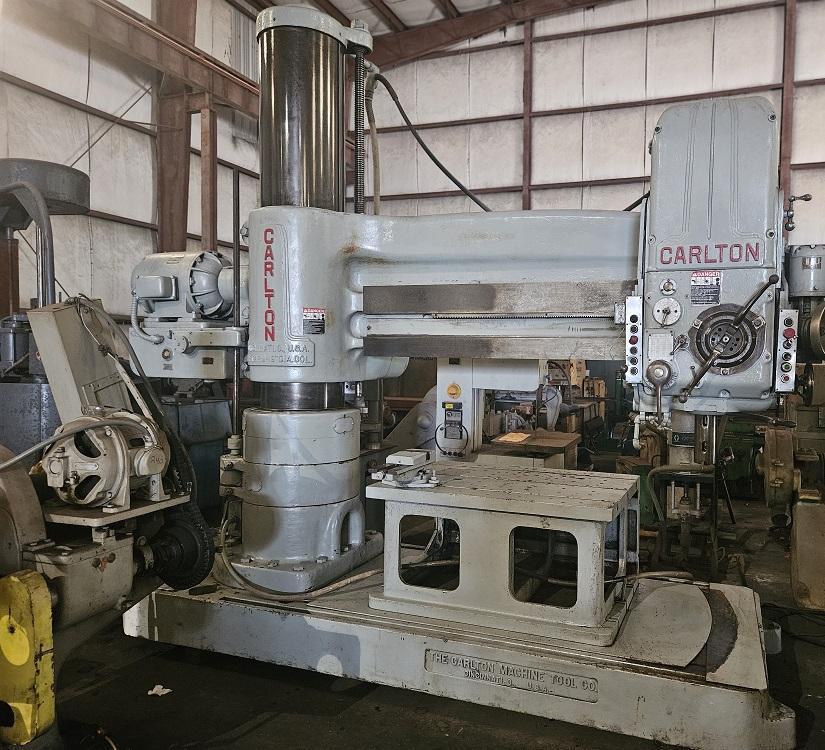

7'19" Carlton Radial Arm Drill
Brand
CARLTON
Model
Type
Drills, Radial
Stock #
0810564
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
7' 19" Carlton Radial Arm Drill
Specifications:
Drills to Center of Circle: 14' Diameter
Column Diameter: 19"
Working Surface of Base: 74" x 50"
Spindle Speeds(36): 12 to 1200 RPM
Feeds (18): 0.004 to 0.125 IPR
Threads: 8, 11-1/2, 14, 18 TPI
Spindle Travel: 20"
Diameter of Spindle: 4"
Taper in Spindle: #6 MT
Vertical Spindle Travel in Head: 20"
Face of Column to Center of Spindle: 13-1/4" Min; 84" Max
Spindle Radius: 27" Min; 96" Max
Distance Spindle to Base: 14-1/2" Min to 72" Max
Travel Arm on Column: 37-1/2"
Travel Head on Arm: 72-3/4"
Motor: 15 HP
Power Clamping: Yes
Power Elevation: Yes
Power Head Traverse: Yes
Built-In Machine Work Light
Friction Type Forward/Reverse Clutch
Hard Replaceable Wear Strip for Head on Arm
The Rear of Machine Base Has a Bolt-On T Section
Adjustable Quill
