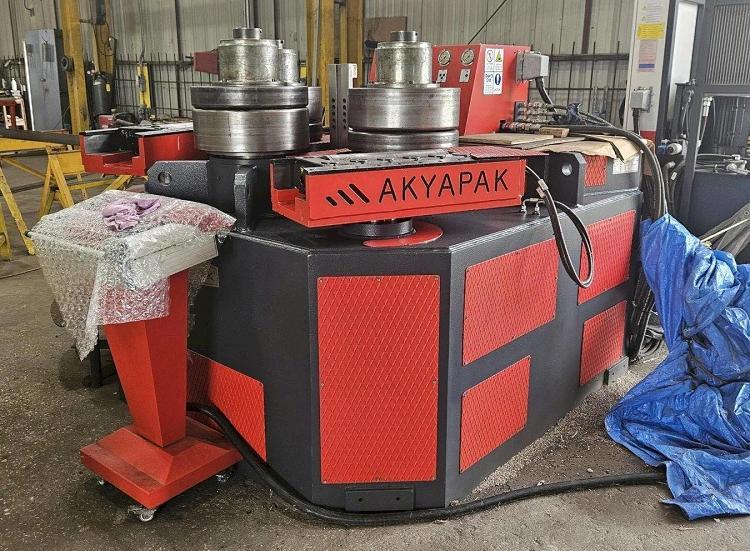

6" x 6" x 5/8" Akyapak Angle Bending Roll With Pedestal Control with Digital Display
Brand
AKYAPAK
Model
Model 180
Type
Rolls, Angle Bending
Stock #
Condition
Used
Year
2018
Location
Houston, Texas
United States
Specifications
Equipped With
6" x 6" x 5/8" Akyapak Angle Bending Roll with Pedestal Control with Digital Display
Model 180
Year 2018
Capacities in A-36 Carbon Steel:
Angle Iron - Leg Out 6" x 6" x 5/8" to 85" ID
Angle Iron - Leg in 5" x 5" x 3/4" to 85" ID
Flat Bar - Out Flat 8" x 2" to 40" ID
Flat Bar - On Edge 6" x 1-1/2" to 70" ID
Square Bar* 3-1/2" to 45" ID
Round Bar* 4-3/8" to 55" ID
Pipe* 6" Schedule 40 to 85" ID
Channel* C12" x 30# to 40" ID
*Requires Optional Tooling
Specifications:
Diameter of the Rolls 18.12"
Rolling Speeds 0 to 20'/min, infinitely variable
Motor Size: 20 HP
Net Weight Approx. 20,400 pounds
Machine Dimensions: 79" x 95" x 67" tall
Includes:
Standard Set of Universal Tools
Digital Display for Showing the Position of the Lower Rolls

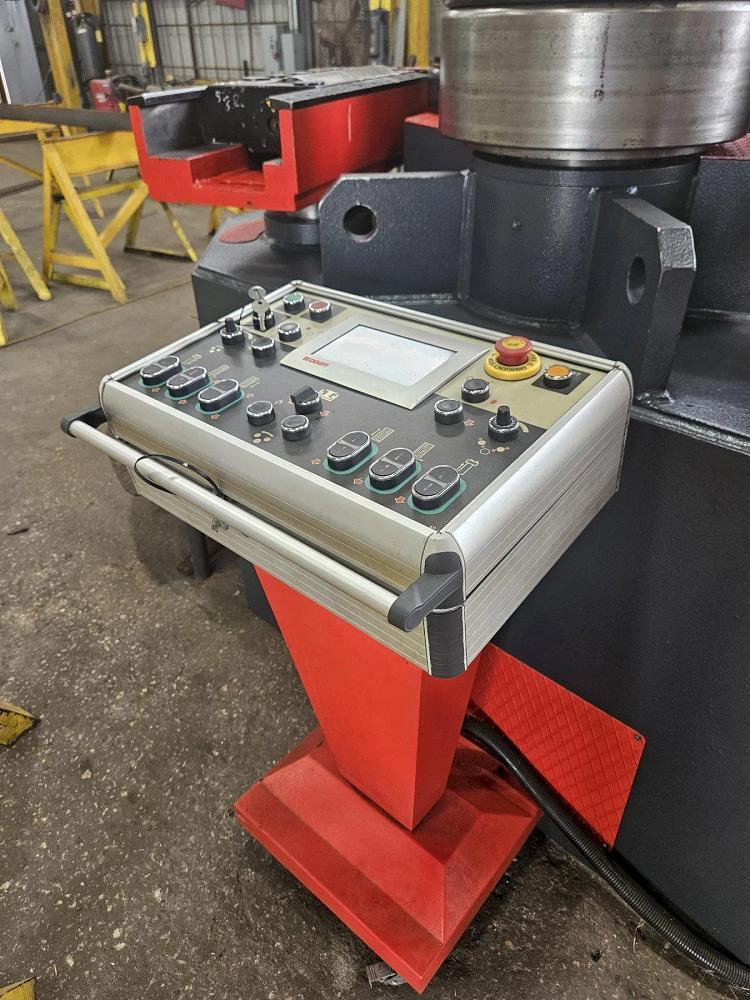

Control Panel on Rolling Console
Guide Rolls are Hydraulically Adjustable in 3 axes - in and out of the machine frame, around their own axis, and in the plane of rolling
Manual Lubrication
Machine with Vertical Shafts for Rolling in the Horizontal Plane
Electrics for 3/60/220V or 3/60/460V
Emergency stop button on Rolling Console
