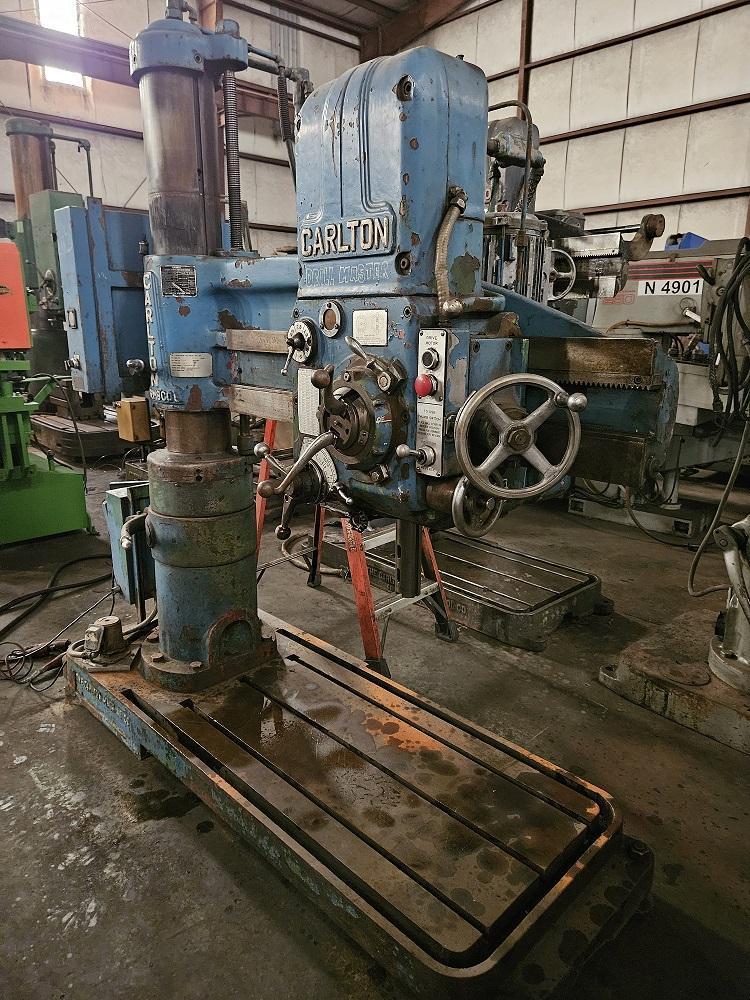

4'9" Carlton Radial Arm Drill
Brand
CARLTON
Model
Type
Drills, Radial
Stock #
0810532
Condition
Used
Year
1982
Location
Houston, Texas
United States
Specifications
Equipped With
4'9" Carlton Radial Arm Drill
S/N: 0A1336
Specifications:
Max Distance Column to Spindle: 4'
Max Height Under Spindle: 52"
Diameter of Column: 9"
Taper in Spindle: #4 MT
Spindle Speeds (9): 100 to 2000 RPM
Spindle Feeds (6): 4, 6, 8, 12, 18, 25
Main Motor Drive: 5 HP
Electricals: 220/440 V
Equipped With:
Power Elevation
Box Table
Coolant System
Approx Weight: 6,000 lbs.
Approx Dimensions: 89"x 32" x 98"
