48" Webster & Bennett Vertical Turret Lathe
Brand
WEBSTER & BENNETT
Model
DH-48
Type
Lathes, VTL (Vertical Turret Lathe)
Stock #
0810563
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With

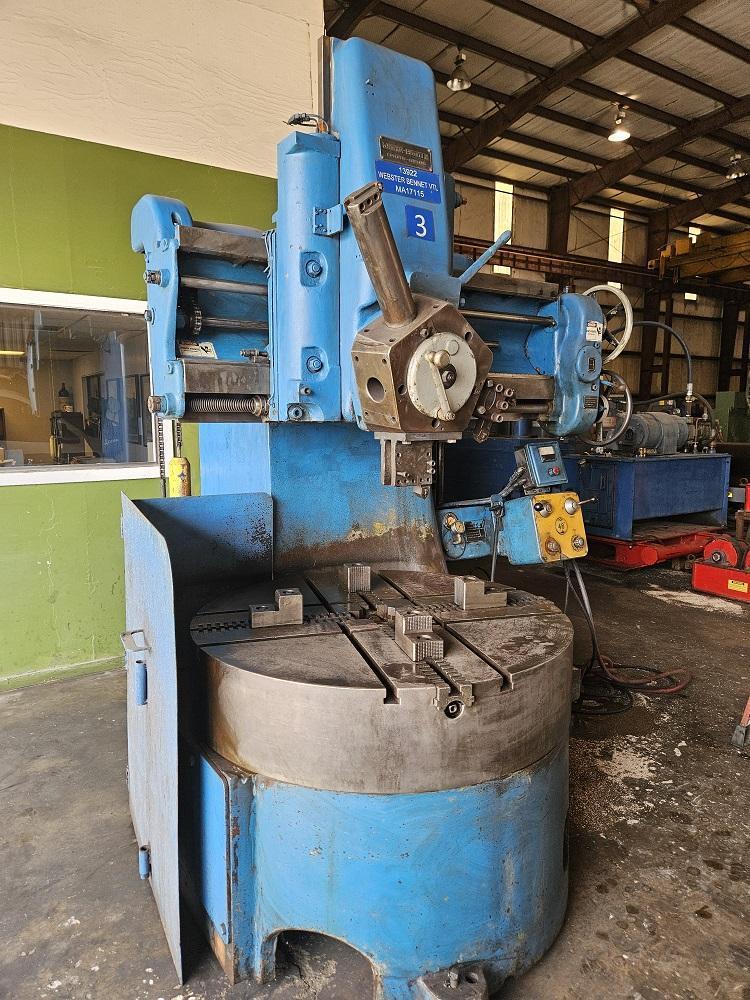

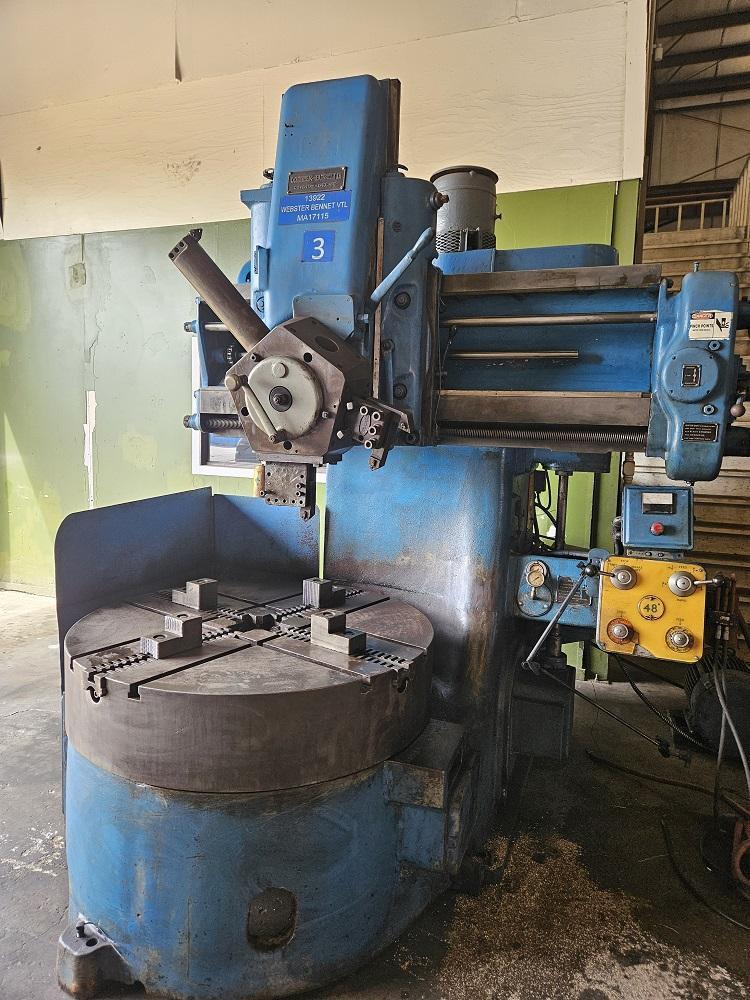

48" Webster & Bennett Model DH-48 Vertical Turret Lathe
S/N: 2364-3
Specifications:
Table Diameter: 47.17"
Swing: 55.031"
Work Height (U/R): 25.55"
Diameter of Chuck: 48"
Vertical Feed of Turrett: 26"
Max Length of Hole which can be bored is: 24"
When Diameter of Bore Exceeds: 28"
Max Length of Hole which can be Bored is: 16"
When Diameter of Bore Does not Exceed: 28"
Dimensions: 89" x 115"
Weight: 19,025 lbs.
