40 x 120 Est Ticino Gap Bed Lathe
Brand
EST TICINO
Model
520
Type
Lathes, Gap Bed
Stock #
0810608
Condition
Used
Year
1990
Location
Houston, Texas
United States
Specifications
Equipped With

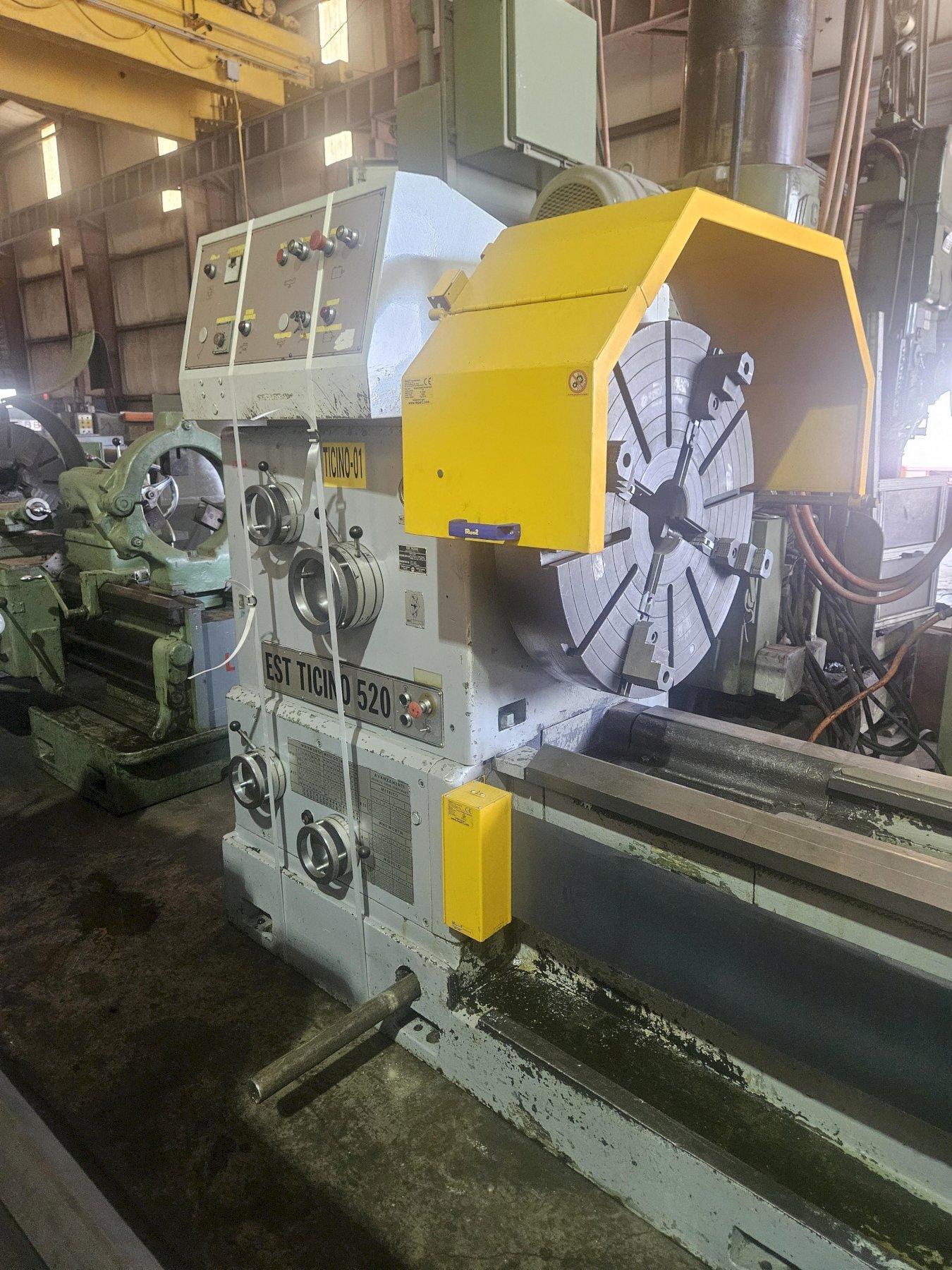

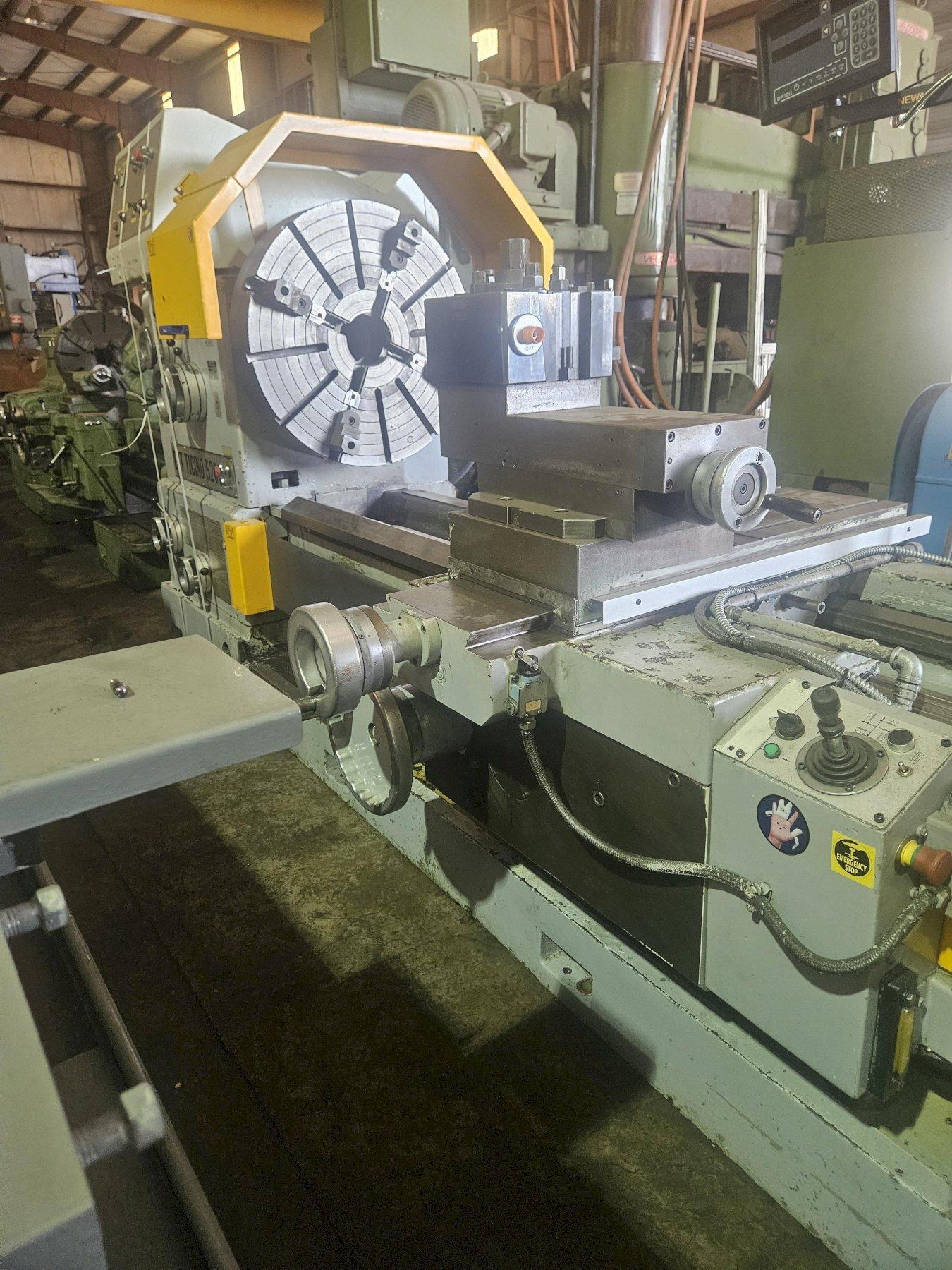

40 x 120 Est Ticino Model 520 Gap Bed Lathe
S/N: 0967 Approx Year 1990
Specifications:
Gap Bed Length: 19-1/2" (Removable)
Centers Distance: 118"
Swing Over Bed: 40.9"
Swing Over Cross Slide: 27.9"
Swing in Gap: 64"
Spindle Bore: 5.1"
Spindle Power: 25 kW
Bed Width: 23.6"
Stroke Pinole: 11.8"
Spindle Taper: 6 Mk
Power: 440V
Speeds: 600 RPM
Equipped With:

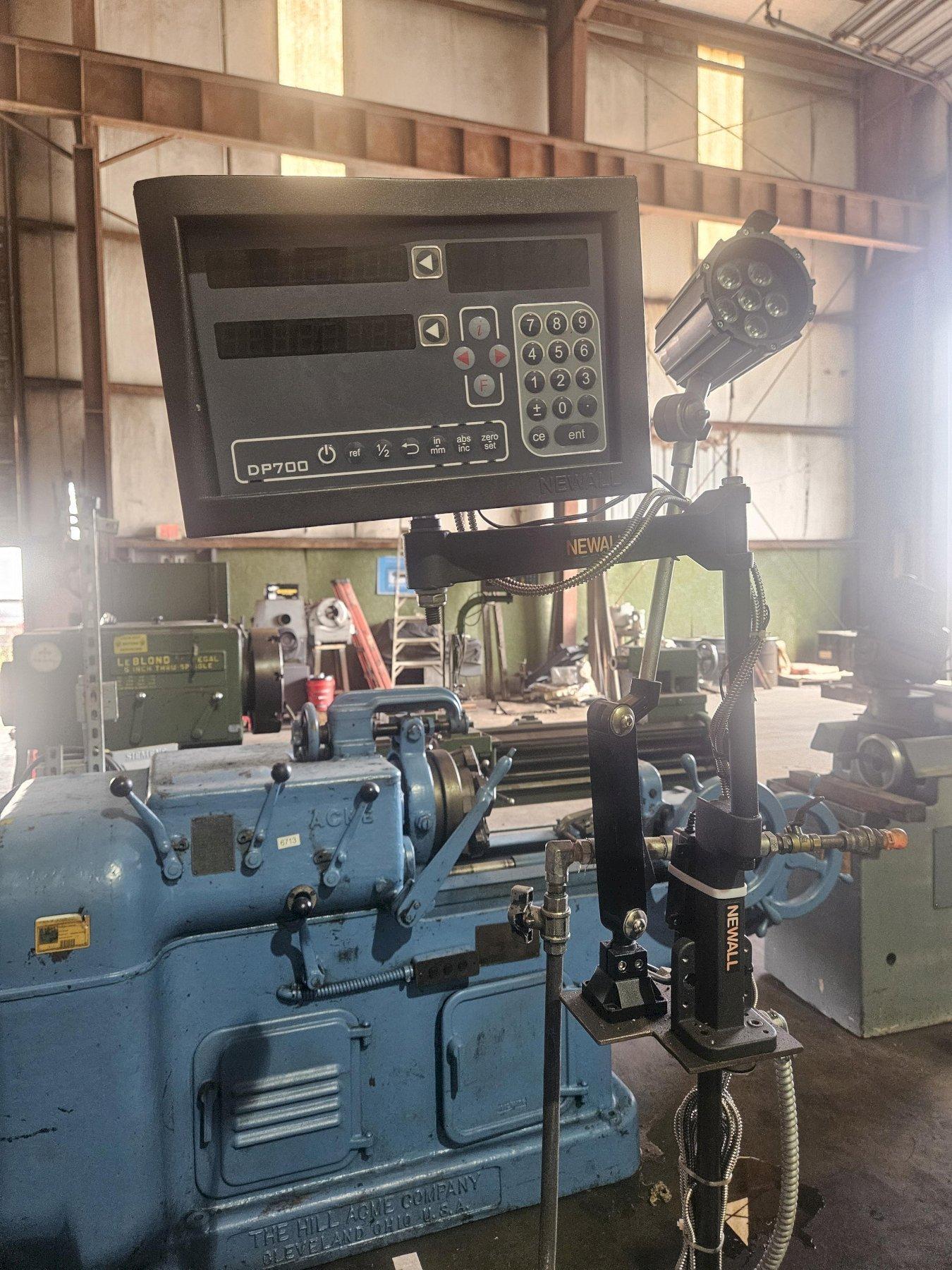

Newall OP700 2 Axis DRO
21" Roller Bearing Steady Rest
31.5" 4-Jaw Chuck
4-Way Rapid Traverse
Approx. OAD: 279" x 92" x 61" (LxWxH)
Weight: 23,000 lbs.
S/N: 0967 Approx Year 1990
Specifications:
Gap Bed Length: 19-1/2" (Removable)
Centers Distance: 118"
Swing Over Bed: 40.9"
Swing Over Cross Slide: 27.9"
Swing in Gap: 64"
Spindle Bore: 5.1"
Spindle Power: 25 kW
Bed Width: 23.6"
Stroke Pinole: 11.8"
Spindle Taper: 6 Mk
Power: 440V
Speeds: 600 RPM
Equipped With:
Newall OP700 2 Axis DRO
21" Roller Bearing Steady Rest
31.5" 4-Jaw Chuck
4-Way Rapid Traverse
Approx. OAD: 279" x 92" x 61" (LxWxH)
Weight: 23,000 lbs.
