30 x 54 American Pacemaker Engine Lathe
Brand
American Pacemaker
Model
Style F
Type
Lathes, Engine
Stock #
0810600
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With

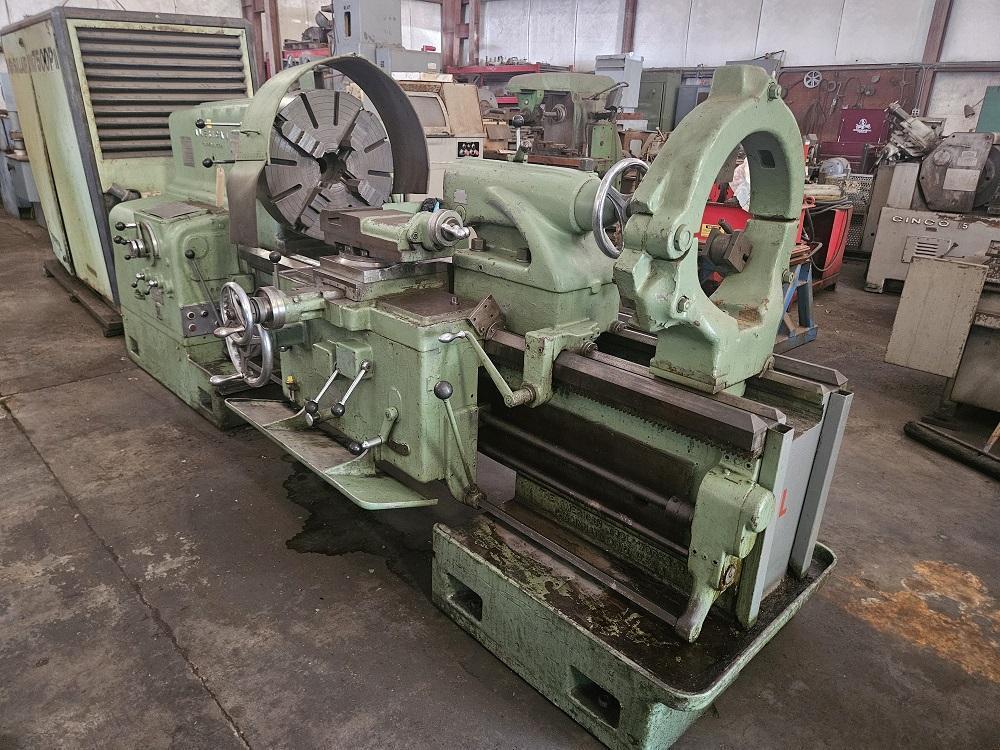

30 x 54 Americal Pacemaker Engine Lathe
S/N: 75267-56
Model: Style F
Specifications:
Swing Over Bed and Carriage Wings: 28"
Swing Over Cross Slide: 19-1/2"
Swing Over Taper Attachment: 19-1/2"
Between Centers: 48"
Motor: 40 HP
Bed Length: 32-5/8"
Spindle Hole: 2-1/2"
Center Taper: No. 5
Large Face Plate Diameter: 27"
Small Face Plate Diameter: 13"
# of Spindle Speeds: 9.18.27
Bed Width: 20"
Bed Depth: 18-1/2"
Length of Carriage on Bed: 35"
Speeds: 24 to 1600 RPM
Feeds: 0.005" to 0.3012"
24" 4-Jaw Chuck
15" Steady Rest
S/N: 75267-56
Model: Style F
Specifications:
Swing Over Bed and Carriage Wings: 28"
Swing Over Cross Slide: 19-1/2"
Swing Over Taper Attachment: 19-1/2"
Between Centers: 48"
Motor: 40 HP
Bed Length: 32-5/8"
Spindle Hole: 2-1/2"
Center Taper: No. 5
Large Face Plate Diameter: 27"
Small Face Plate Diameter: 13"
# of Spindle Speeds: 9.18.27
Bed Width: 20"
Bed Depth: 18-1/2"
Length of Carriage on Bed: 35"
Speeds: 24 to 1600 RPM
Feeds: 0.005" to 0.3012"
24" 4-Jaw Chuck
15" Steady Rest
