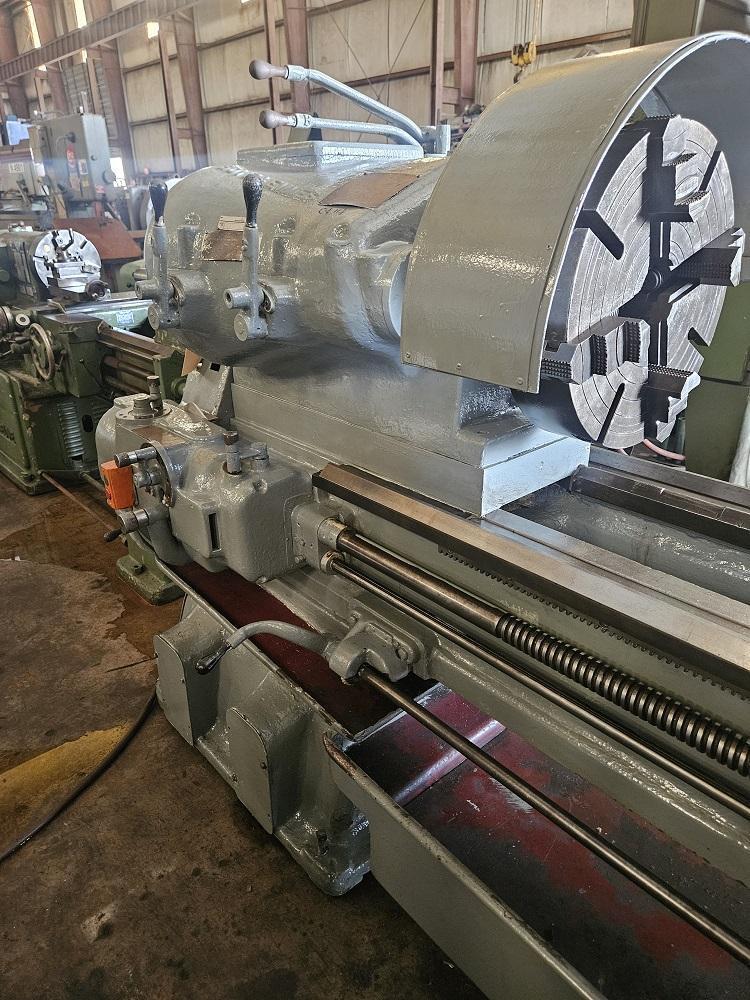

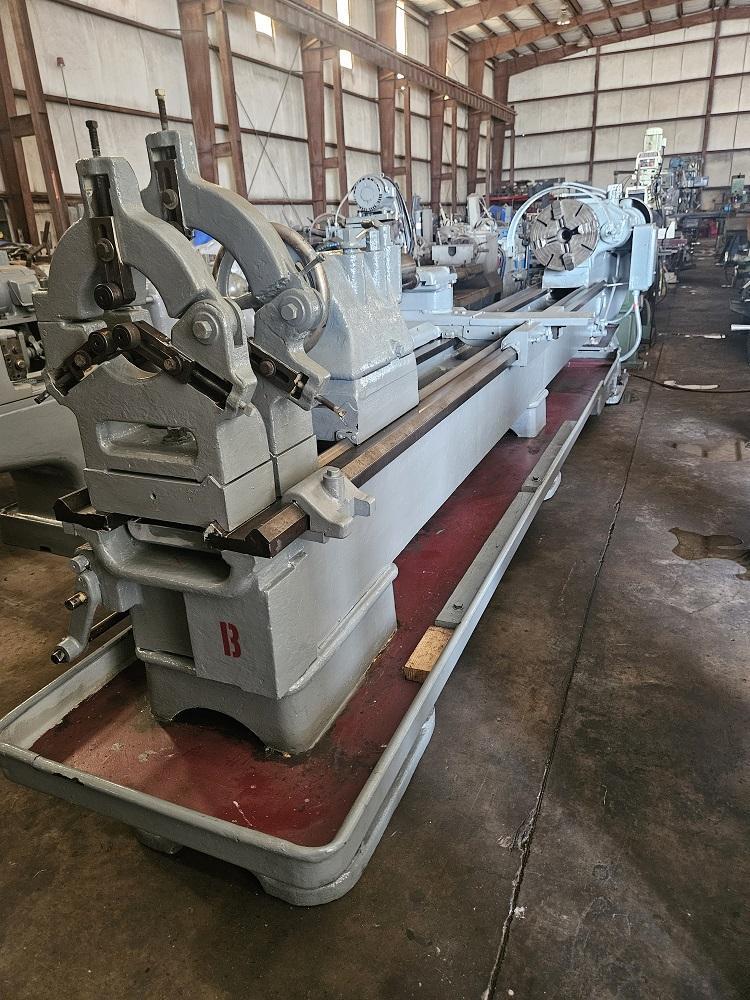

28-1/2 x 144 Boye & Emms Engine Lathe
Brand
BOYE & EMMES
Model
Type
Lathes, Engine
Stock #
0810599
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
28-1/2 x 144 Boye & Emms Engine Lathe
S/N: CL1213
Specifications:
Swing Over Bed: 22-1/2"
Swing Over Carriage: 15-1/2"
Swing Over Palin Bottom: 14-3/4"
Swing Over Taper Attachment: 13-1/8"
Standard Speed Range: Low 12-1/2 to 436 High 19 to 654
Driving Pulley: Low 460 RPM High 690 RPM
Motor: 7-1/2 to 15 HP
Spindle Hole: 2"
Taper Hole: Morse 6
# of Morse Taper Centers: 5
Tailstock Spinde Diameter: 4"
Number of Feeds and Threads: 48
Feed Range: 0.0027 to 0.154"
Threads Range: 1 to 56
Diameter and Pitch Lead Screw: 1-3/4" to 2"
7" Steady Rest
18" 4-Jaw Chuck
S/N: CL1213
Specifications:
Swing Over Bed: 22-1/2"
Swing Over Carriage: 15-1/2"
Swing Over Palin Bottom: 14-3/4"
Swing Over Taper Attachment: 13-1/8"
Standard Speed Range: Low 12-1/2 to 436 High 19 to 654
Driving Pulley: Low 460 RPM High 690 RPM
Motor: 7-1/2 to 15 HP
Spindle Hole: 2"
Taper Hole: Morse 6
# of Morse Taper Centers: 5
Tailstock Spinde Diameter: 4"
Number of Feeds and Threads: 48
Feed Range: 0.0027 to 0.154"
Threads Range: 1 to 56
Diameter and Pitch Lead Screw: 1-3/4" to 2"
7" Steady Rest
18" 4-Jaw Chuck
