24" Babin Auto Bolt Circle Drill
Brand
BABIN
Model
Circl-Matic 24"
Type
Drills, Bolt Circle
Stock #
0110565
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With

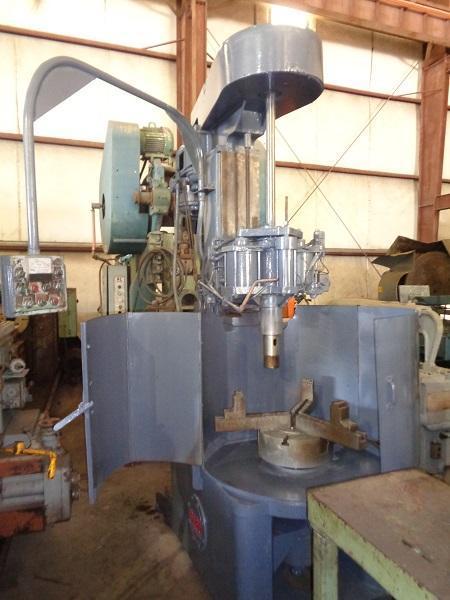

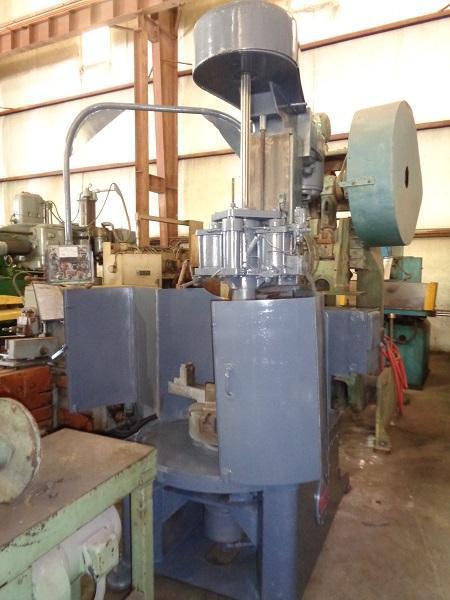

24" Babin Circle-Matic Automatic Bolt Circle Drill
S/N: ADP192
Specifications:
Equipped With:

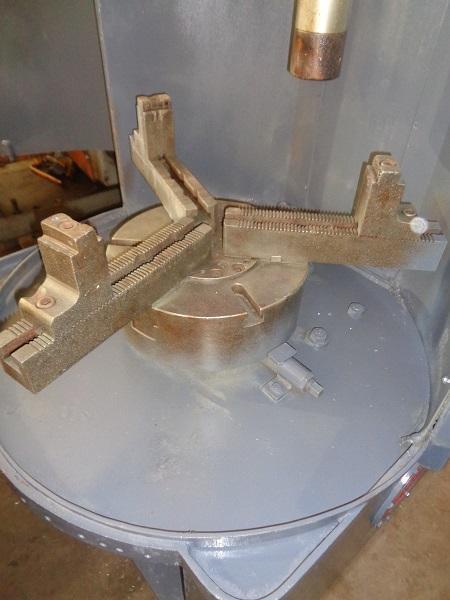

15" 3-Jaw Air Operated Chuck
Tachometer for Spindle Speeds
Coolant Pump
Splash Guards
Approx Dimensions: 50" W x 133" H
Approx Weight: 5,600 lbs
S/N: ADP192
Specifications:
- Standard Bolt Circle Range: 4" to 30"
- Standard Division of Equal Spaced Holes: 4,5,6,8,10,12,16,20 & 24
- Max Diameter of Work Piece (Swing): 33"
- Max OD Chucking with Standard Jaws: 26"
- Max ID Chucking with Standard Jaws: 33"
- Centerline of Chuck to Front & Rear of Machine: 23" and 55"
- Drilling Capacity in Carbon Steel: 2-1/2"
- Spindle Stroke Maximum: 6"
- Spindle Speeds: 76 to 552 RPM
- Spindle Taper: 5 MT
- Maximum Table Weight w/ Support Rings: 1,500 lbs
- Main Motor: 5 HP
Equipped With:
15" 3-Jaw Air Operated Chuck
Tachometer for Spindle Speeds
Coolant Pump
Splash Guards
Approx Dimensions: 50" W x 133" H
Approx Weight: 5,600 lbs
