2014 NOV Hydraulic 1289 Torquemaster Junior
Brand
Not Specified
Model
1289 Torquemaster Junior
Type
Tube Machinery, Miscellaneous
Stock #
0110590
Condition
Used
Year
2014
Location
Houston, Texas
United States
Specifications
Equipped With
2014 NOV Hydraulic 1289 Torquemaster Junior
Specifications:
Max Breakout Torque: 70,000 ft/lb
Max Makeup Torque: 56,000 ft/lb
Min Makeup Torque: 3,000 ft/lb
Standard Tong DIe Range: 2-5/8" to 8-5/8" Outer Diameter
Extra-Tall Tong Die Range: 1-5/8" to 7-5/8" Outer Diameter
Min Distance Between Jaws: 16"
Operating Pressure: 3,250 psi
Power Requirement: 10 HP Electric Motor
Operation Type: Low Pressure, standalone hydraulic control console operated by one person

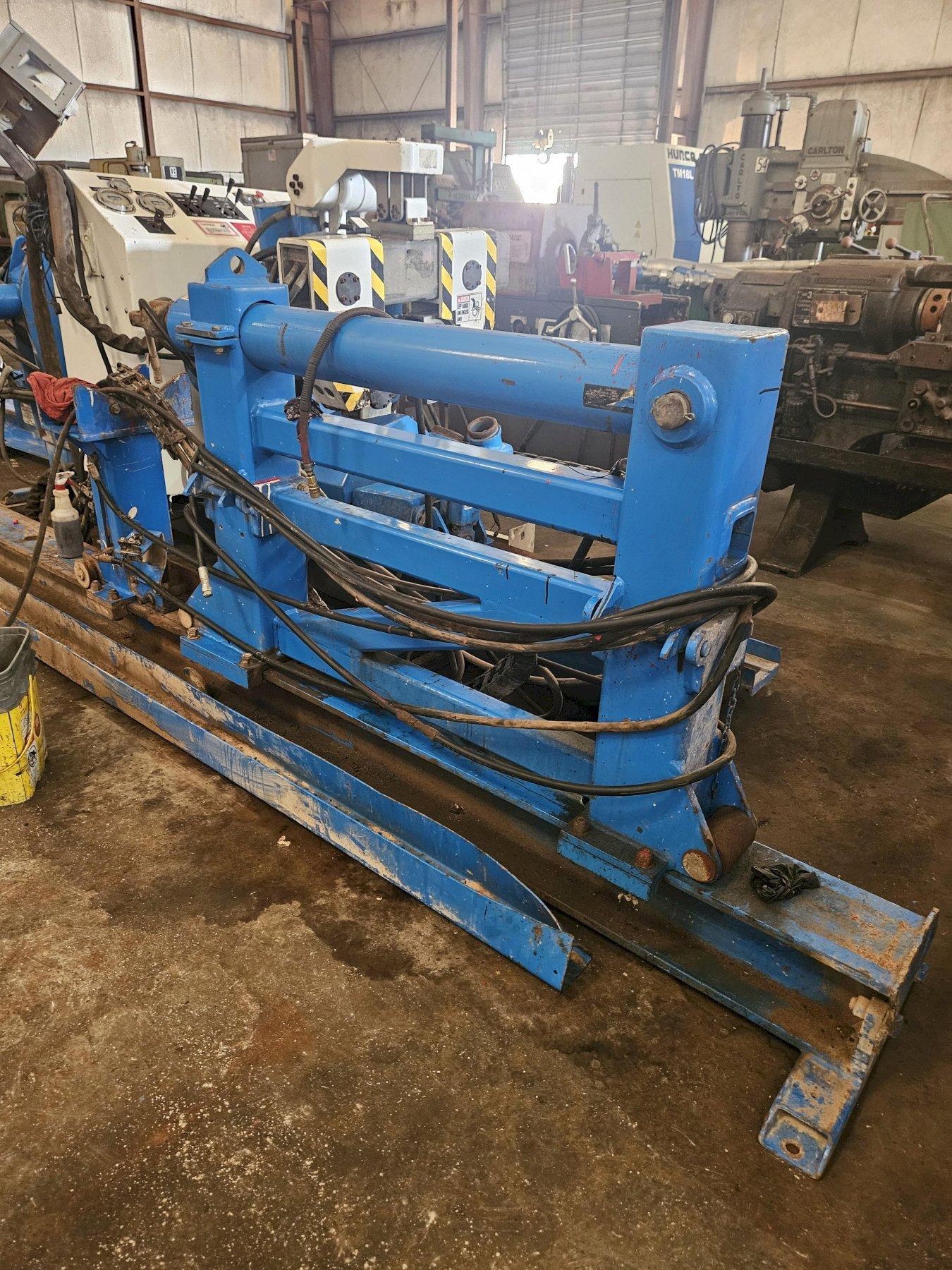

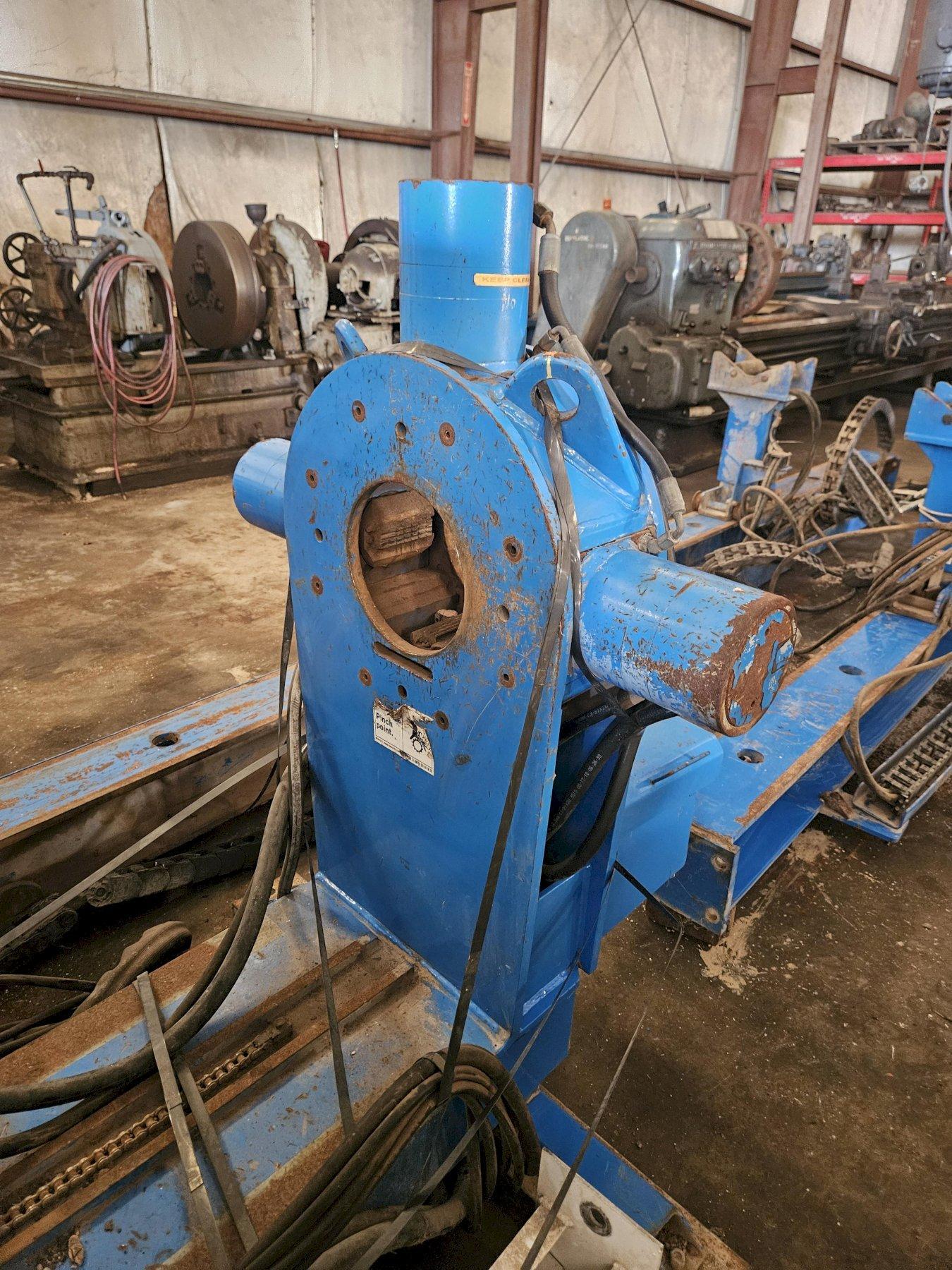

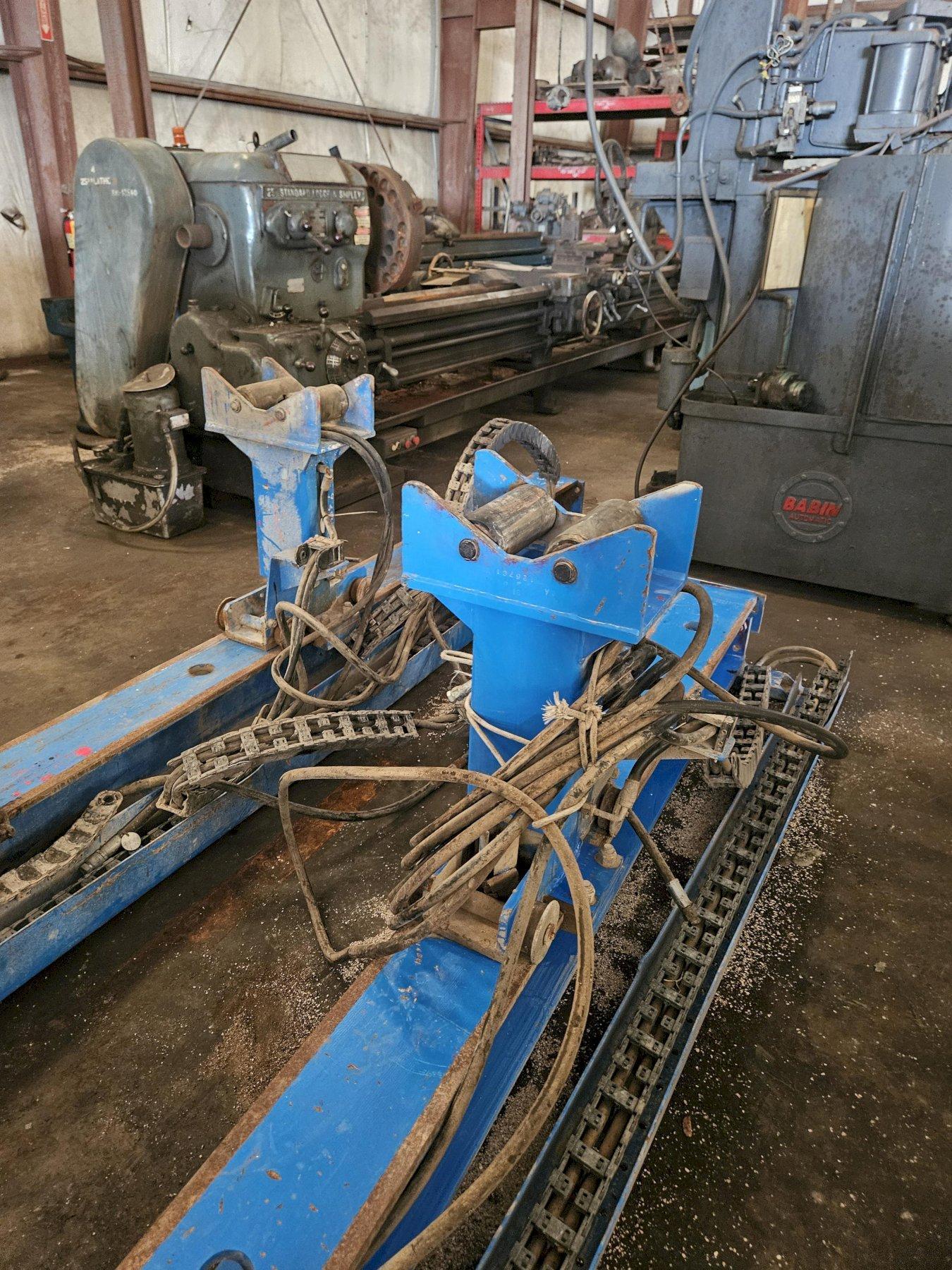

Breakout Base Unit (12' bed-only, with spinner) 160" (L) x 40" (W) x 61" (H)

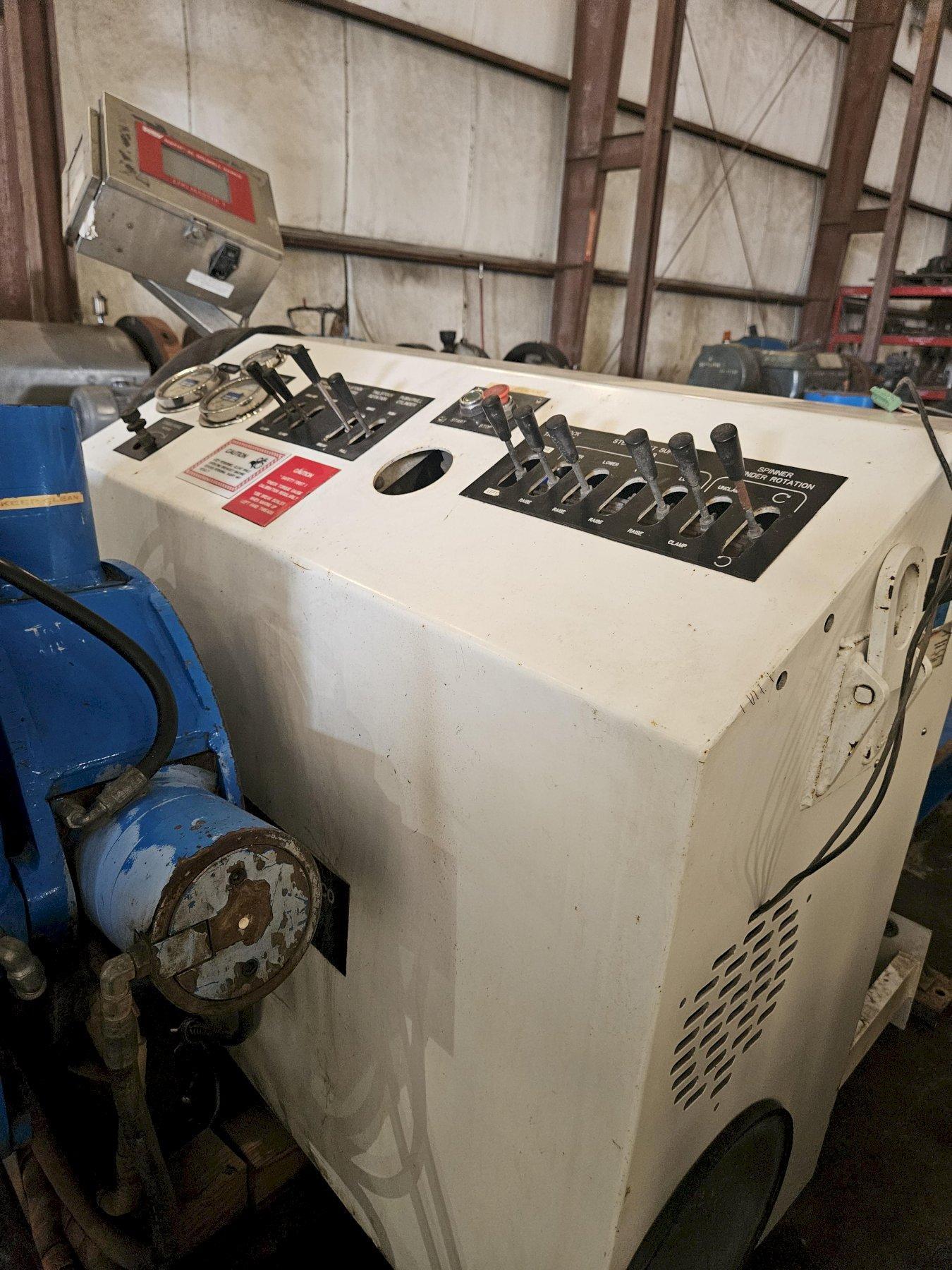

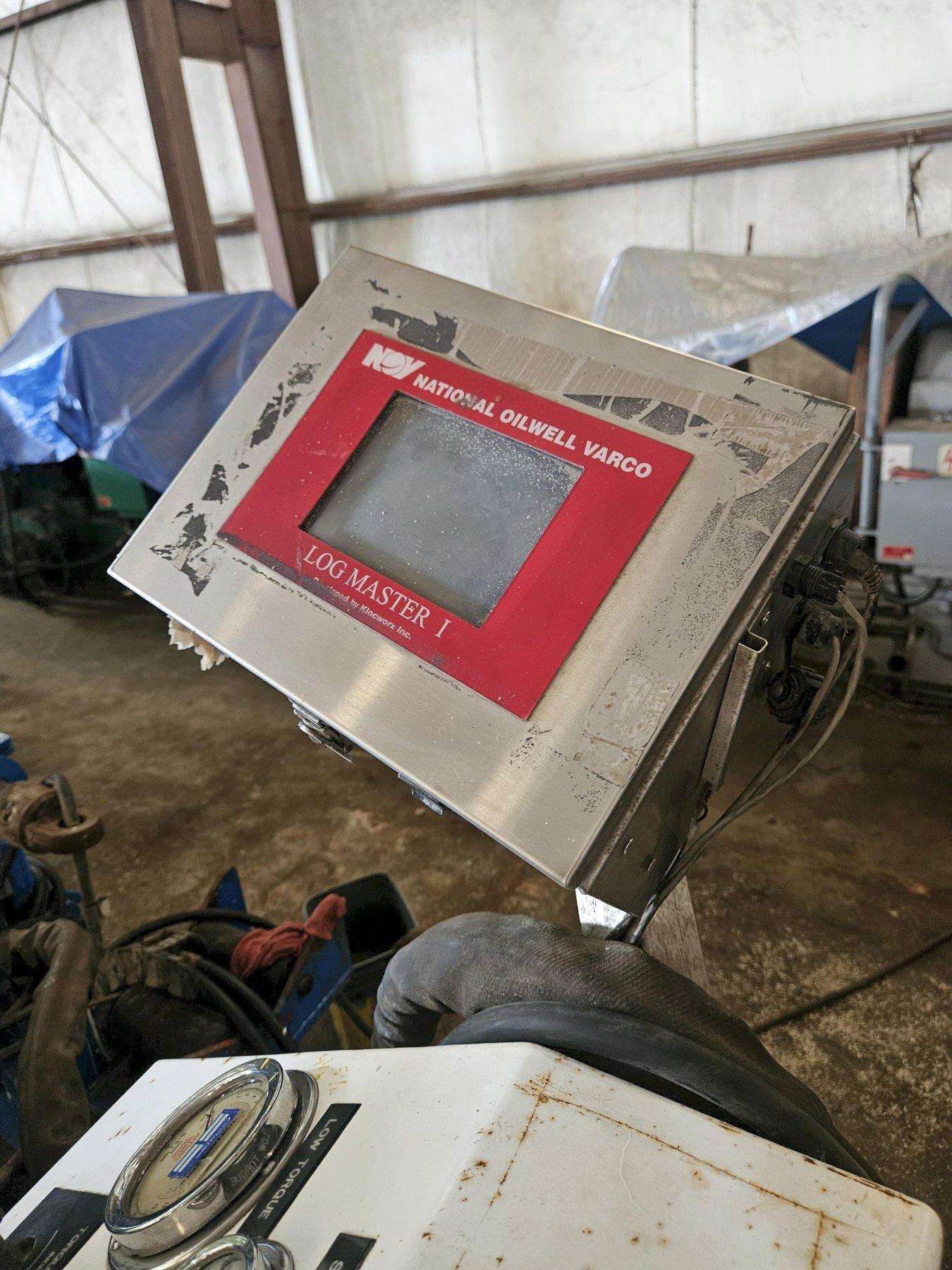

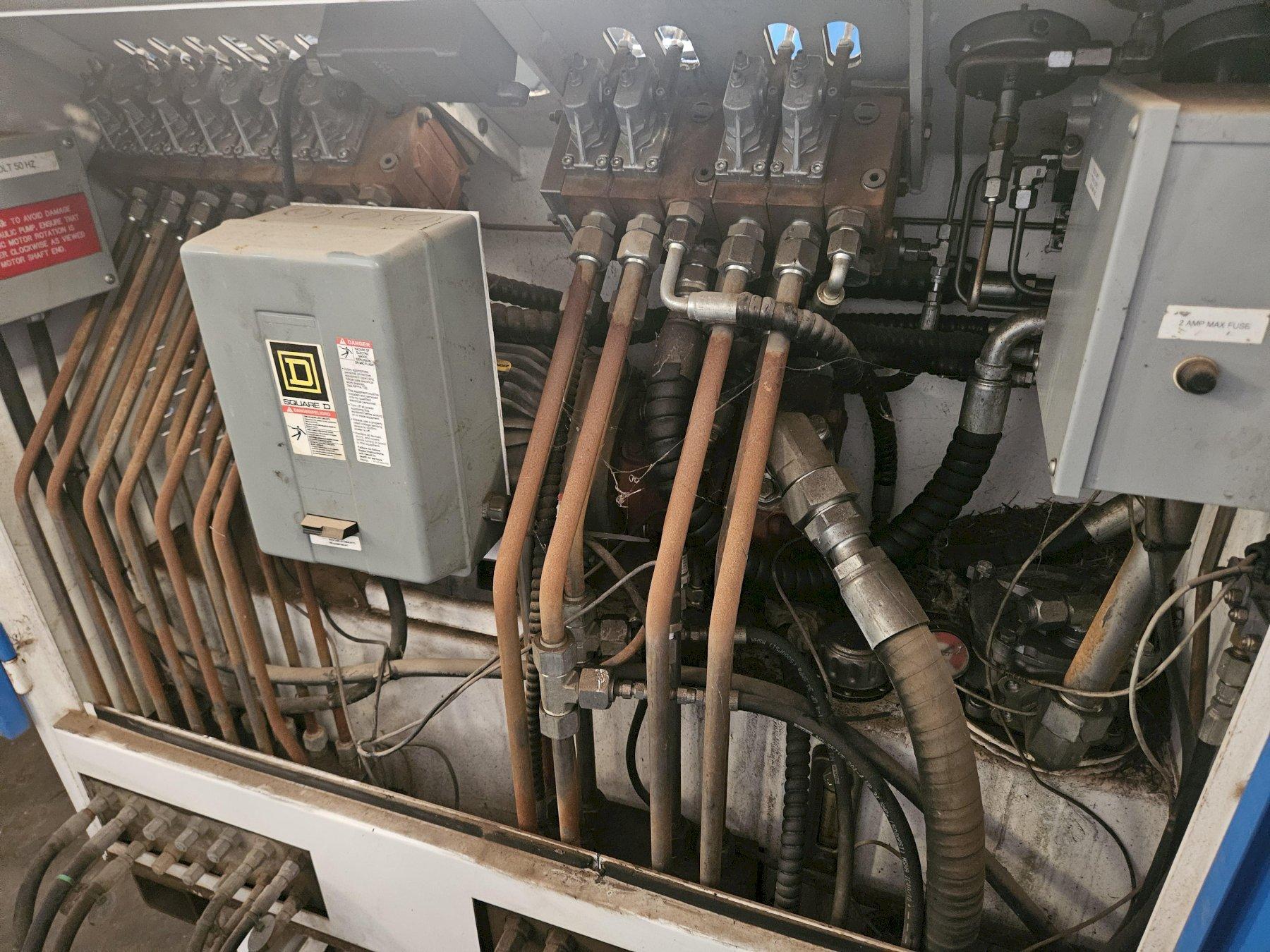

HPU & Console (with LogMaster II): 62" x 20-1/8" x 44"
Base Unit Weight: 3,900 lbs.
Console Weight: 1,240 lbs.
Specifications:
Max Breakout Torque: 70,000 ft/lb
Max Makeup Torque: 56,000 ft/lb
Min Makeup Torque: 3,000 ft/lb
Standard Tong DIe Range: 2-5/8" to 8-5/8" Outer Diameter
Extra-Tall Tong Die Range: 1-5/8" to 7-5/8" Outer Diameter
Min Distance Between Jaws: 16"
Operating Pressure: 3,250 psi
Power Requirement: 10 HP Electric Motor
Operation Type: Low Pressure, standalone hydraulic control console operated by one person
Breakout Base Unit (12' bed-only, with spinner) 160" (L) x 40" (W) x 61" (H)
HPU & Console (with LogMaster II): 62" x 20-1/8" x 44"
Base Unit Weight: 3,900 lbs.
Console Weight: 1,240 lbs.
