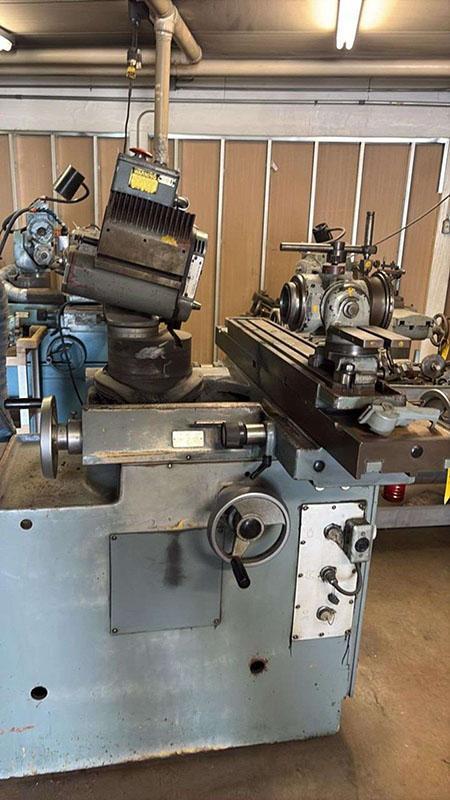

#2 Cincinnati - Milacron Universal Tool and Cutter Grinder
Brand
CINCINNATI MILACRON
Model
MT
Type
Grinders, Tool & Cutter
Stock #
0110605
Condition
Used
Year
1990
Location
Houston, Texas
United States
Specifications
Equipped With
#2 Cincinnati - Milacron Universal Tool and Cutter Grinder

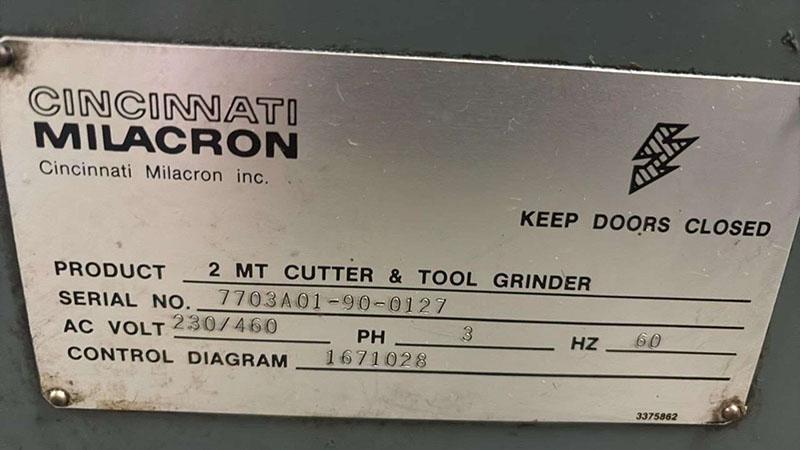

S/N: 7703A01-90-0127 Model: MT New: 1990
Specifications:
Swing Over Table Diameter: 10"
Length, Between Right and Left Hand Tailstocks: 27"
Length, Between Tailstock and Workhead: 21-1/2"
Face Mills on Workhead Diameter: 10"
Face Mills Using Face Mill Grinding Attach: Dia. 18"
Saws on Table Diameter: 48"
Formed Cutters (using 6" Wheel) Diameter: 10"
Range:
Table Size: 6" x 36"
Longitudinal Table Travel: 16"
Cross Movement of Table: 10"
Table Swivel: 180 Deg.
Table Taper per Foot on Dia. (Toward & Away): 5"
Fine Adj. Taper per Foot on Dia. (Toward & Away): 2"
Table Graduations in Center, in Degrees: 90 Deg.
Vertical Movement of Grinding Wheel Spindle: 10-1/2"
Max. Distance Centerline of Spindle to Table: 13-1/2"
Spindle Tilts Above and Below Center: 15 Degrees
Swivel Movement of Grinding Wheel Spindle: 360 Deg.
Spindle Speeds:
6" Wheel, Surface Speed 6,022 Ft/Min: 3834 RPM
3" Wheel, Surface Speed 5,887 ft./min: 6425 RPM
Weight & Dimensions:
Approximate Machine Weight: 3,000 lbs.
Approximate Dimensions: 36" x 38" D x 60" H
Machine Features:

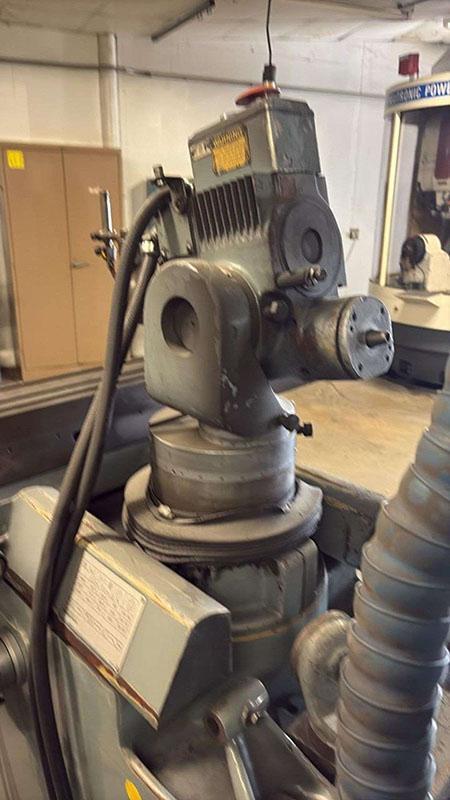

Tilting Wheelhead (15 Deg. Above and Below)
Duplicate Controls at the Front and Rear of the Table
Ball Bearing Anti-Friction Table Rolling In
Replaceable Hardened Steel V-Ways
360 Degree Eccentric Wheelhead and Swivel Table Which can increase Specified Cross by 70%
Cast Iron Construction
One-Shot Lubrication System
2-Speed Spindle, Instantly Reversible
1 HP 3/60/230-460 Volt Spindle Motor

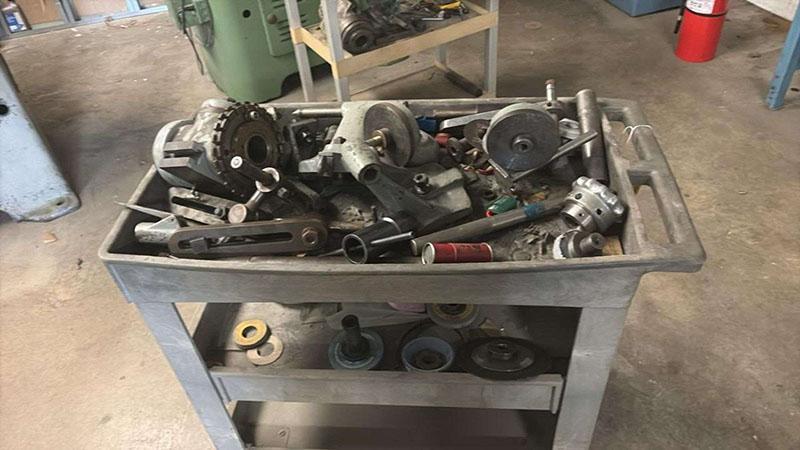

Equipped With:

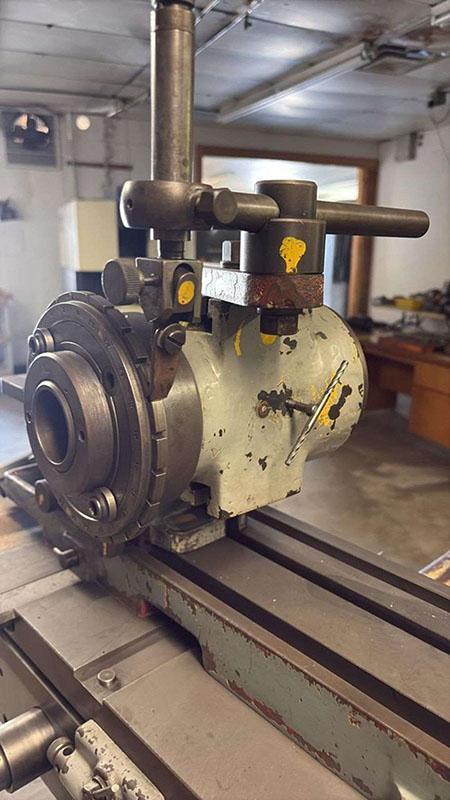

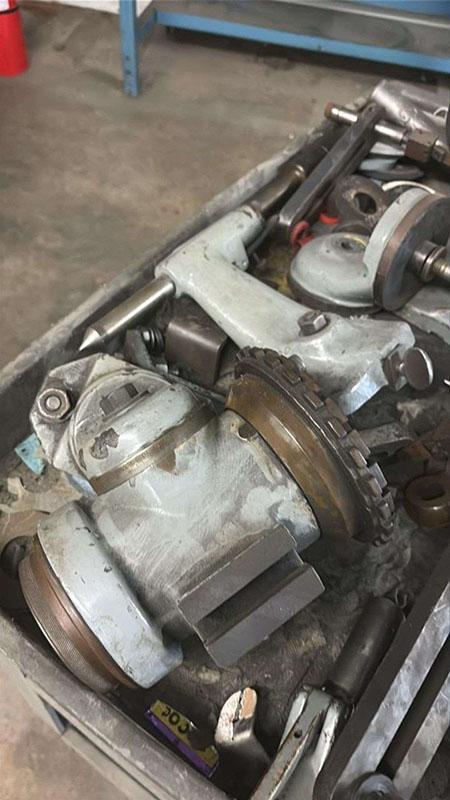

Cincinnati-Milacron Workhead with 24 Position Index Plate,
Workhead has #5 MT and #50 NST Tapers
