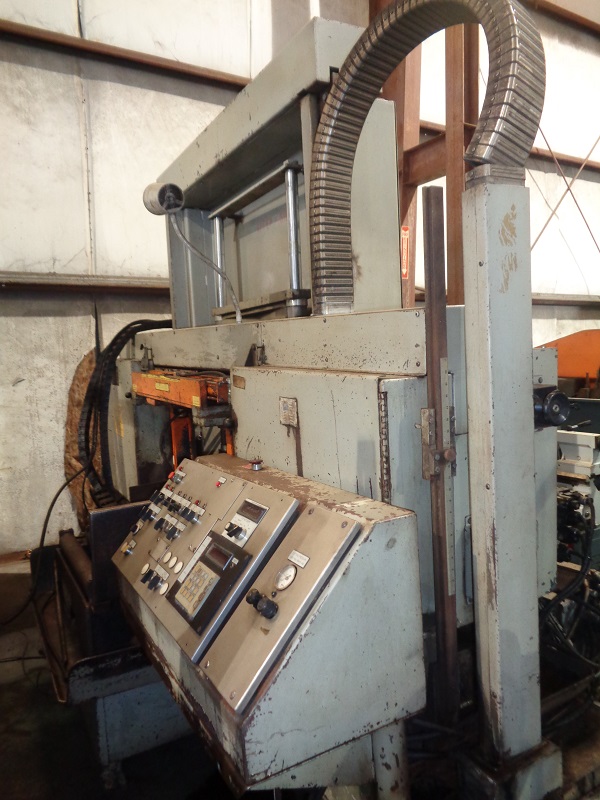

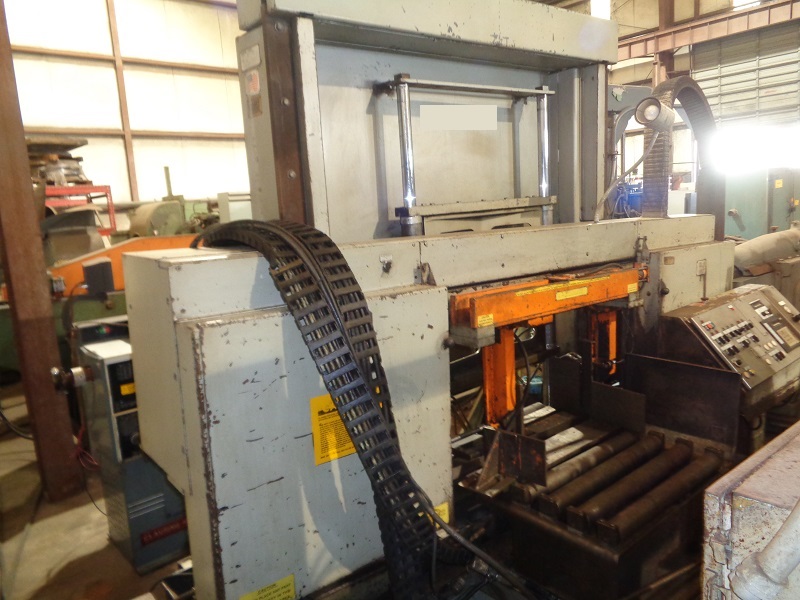

18 x 27 HEM Model F130HA-DC Double Column Programmable Automatic Horizontal Band Saw
Brand
HEM
Model
F130HA-DC
Type
Saws, Band, Horizontal
Stock #
0110256
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
18 x 27 Hem Double Column Programmable Automatic Horizontal Band Saw
S/N: 495896 Model: F130HA-DC Year: 1996
Specifications:
Capacity:
Round: 18" Diameter
Rectangle: 18" x 27"
Vise Shuttle Stroke: 0 to 72"
Blade Size: 1.5" x .050 " Thick x 22'2" Long
Blade Speeds: 80 to 400 FPM
Main Motor Drive: 10 HP AC
Approx Weight: 8,500 lbs
Hydraulic Motor 2 HP A.C.
Equipped With:
2 Hydraulic Vises
Optional 3rd Hydraulic Vise on Table Feed
Computer Controlled Feed System
Double Column
Cut Watcher Blade Monitor System
Top Clamp for Bundling
Multiple Index
Optional 72" Bar Feed Stroke
Hydraulic Unit
Canted Head, 2 Degree Tilt
Powered Moveable Guide Arm
Powered Length Positioner
Powered Blade Tension
2 Hydraulic Bundling Vises
Variable Blade Speed

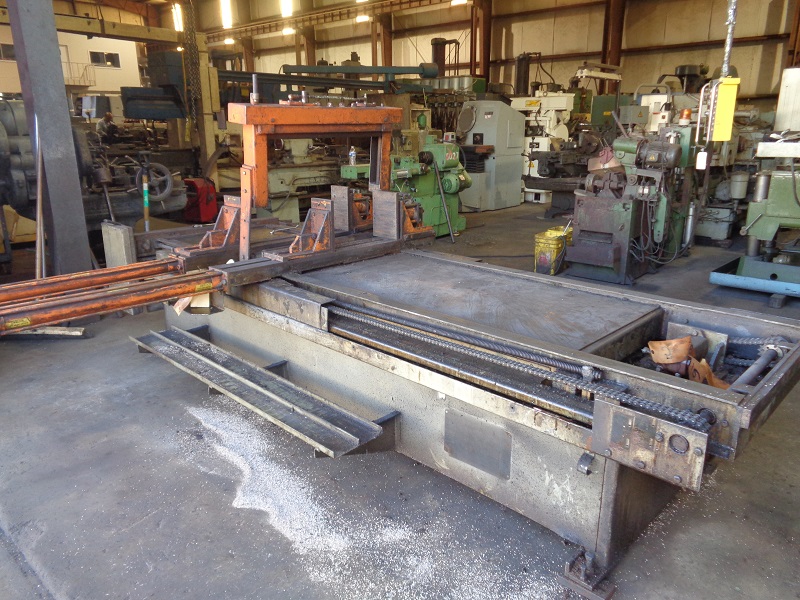

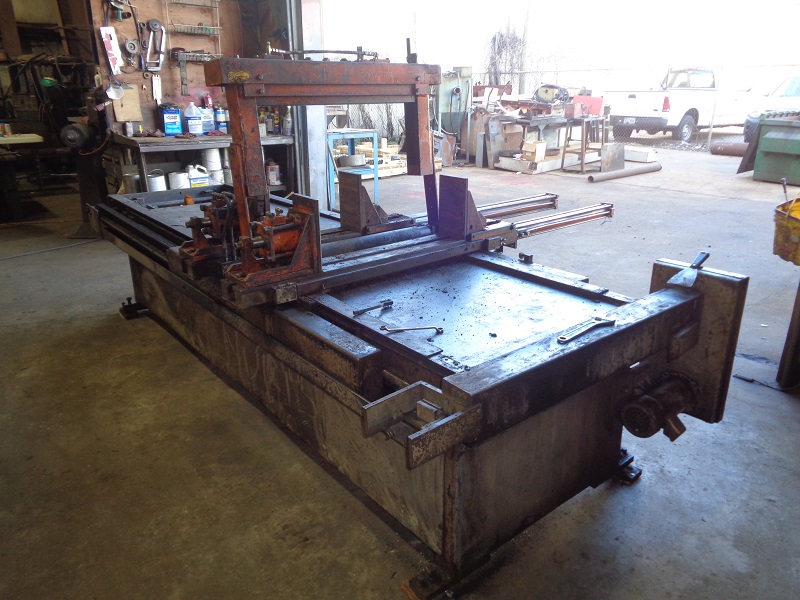

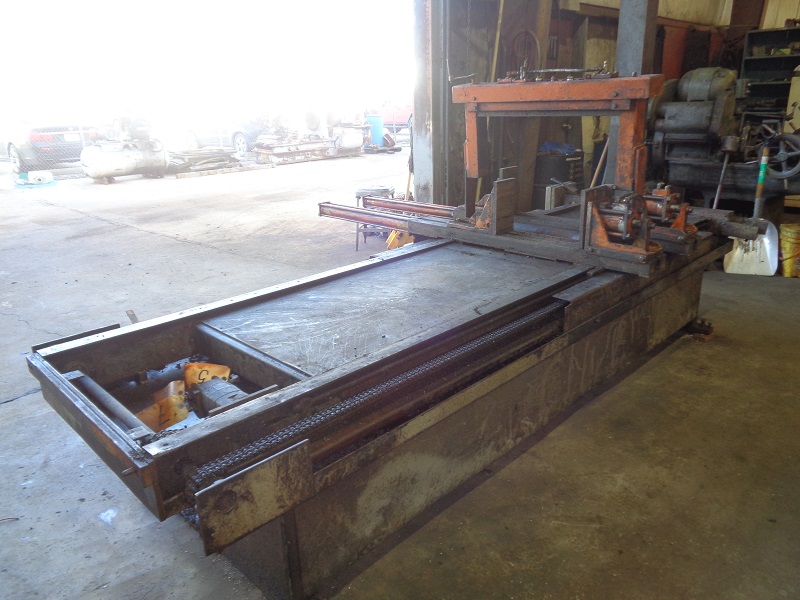

Discharge Table
Coolant System
Full Stroke Vises
Chip Auger
S/N: 495896 Model: F130HA-DC Year: 1996
Specifications:
Capacity:
Round: 18" Diameter
Rectangle: 18" x 27"
Vise Shuttle Stroke: 0 to 72"
Blade Size: 1.5" x .050 " Thick x 22'2" Long
Blade Speeds: 80 to 400 FPM
Main Motor Drive: 10 HP AC
Approx Weight: 8,500 lbs
Hydraulic Motor 2 HP A.C.
Equipped With:
2 Hydraulic Vises
Optional 3rd Hydraulic Vise on Table Feed
Computer Controlled Feed System
Double Column
Cut Watcher Blade Monitor System
Top Clamp for Bundling
Multiple Index
Optional 72" Bar Feed Stroke
Hydraulic Unit
Canted Head, 2 Degree Tilt
Powered Moveable Guide Arm
Powered Length Positioner
Powered Blade Tension
2 Hydraulic Bundling Vises
Variable Blade Speed
Discharge Table
Coolant System
Full Stroke Vises
Chip Auger
