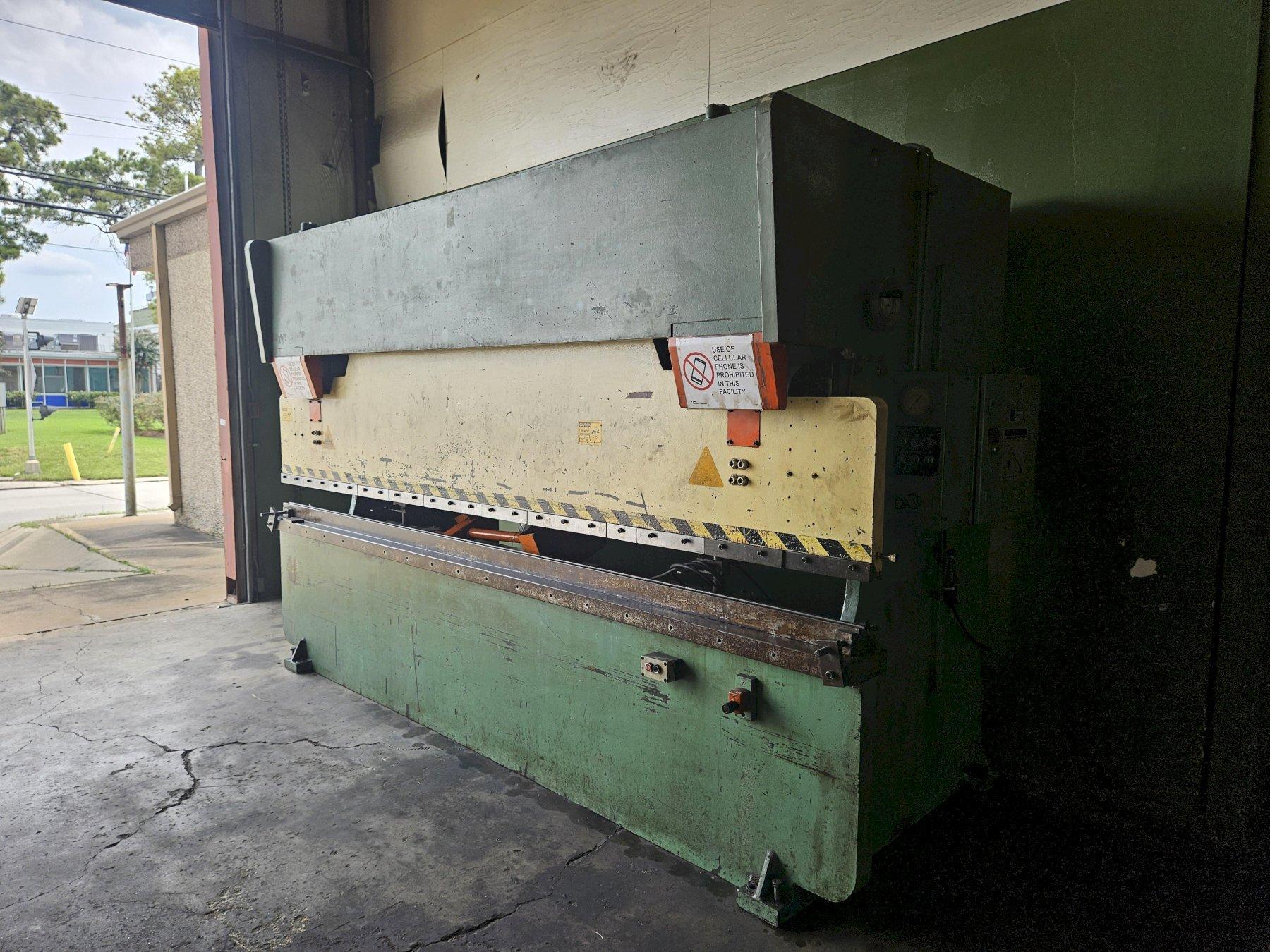

12' x 175T GMS Model AP#37160 Press Brake
Brand
GMS
Model
AP#37160
Type
Brakes, Press
Stock #
0810577
Condition
Used
Year
Location
Houston, Texas
United States
Specifications
Equipped With
12' x 175T GMS Model AP#37160 Press Brake
S/N: P8518
Specifications:
Capacity: 175 Ton
Bending Length: 145.6"
Distance between Housing: 125.9"
Throat Depth: 11"
Stroke: 6"
Daylight: 13"
Table Width: 7.5"
Fast Approach Speed: 2.3" per Sec
Bending Work Speed: .3" per Sec
Return Speed: 2.75" per Sec
Motor: 15 HP
Equipped With:
Full Length Multi V-Die Block
Full Length Straight Top Tool

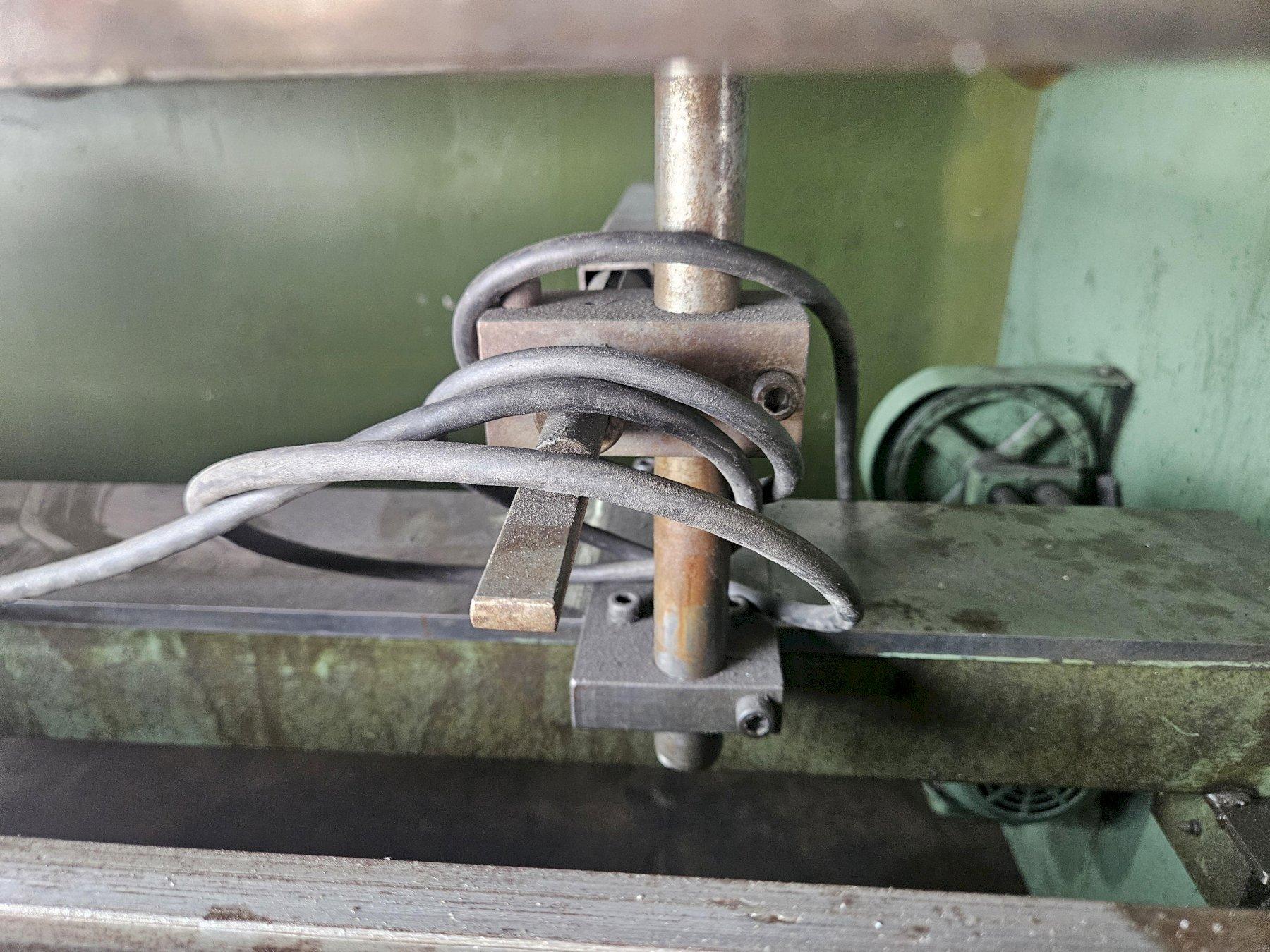

Front Operated Power Back Gauge
Approx. Weight: 23,100 LBS.
Approx. Size: 94" H x 59" W x 149" L
S/N: P8518
Specifications:
Capacity: 175 Ton
Bending Length: 145.6"
Distance between Housing: 125.9"
Throat Depth: 11"
Stroke: 6"
Daylight: 13"
Table Width: 7.5"
Fast Approach Speed: 2.3" per Sec
Bending Work Speed: .3" per Sec
Return Speed: 2.75" per Sec
Motor: 15 HP
Equipped With:
Full Length Multi V-Die Block
Full Length Straight Top Tool
Front Operated Power Back Gauge
Approx. Weight: 23,100 LBS.
Approx. Size: 94" H x 59" W x 149" L
