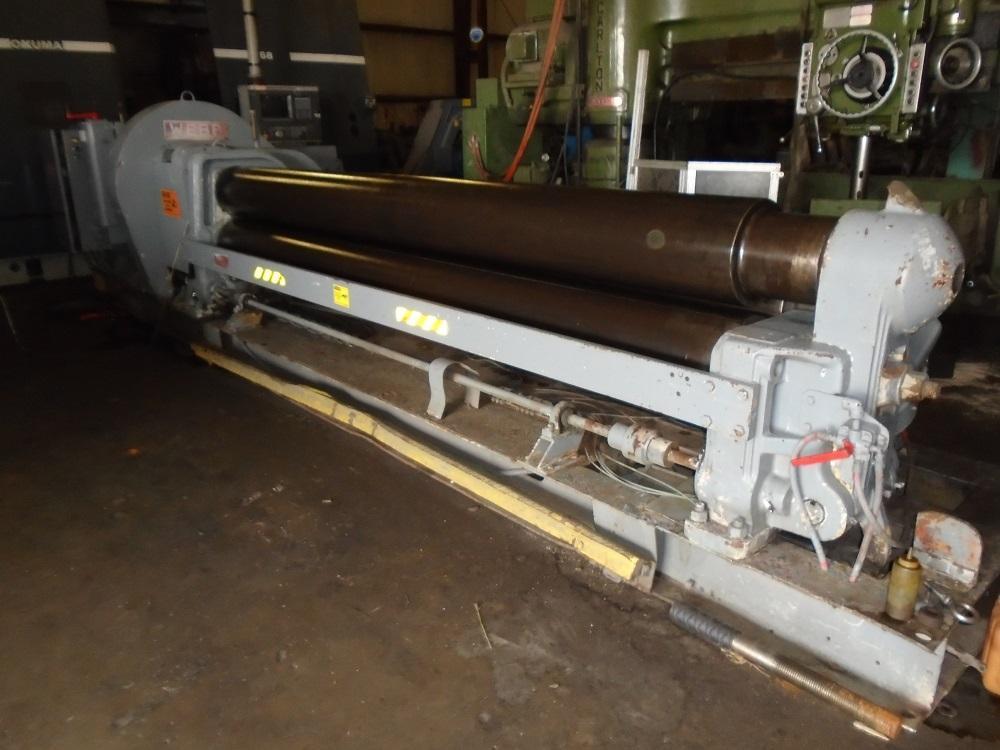

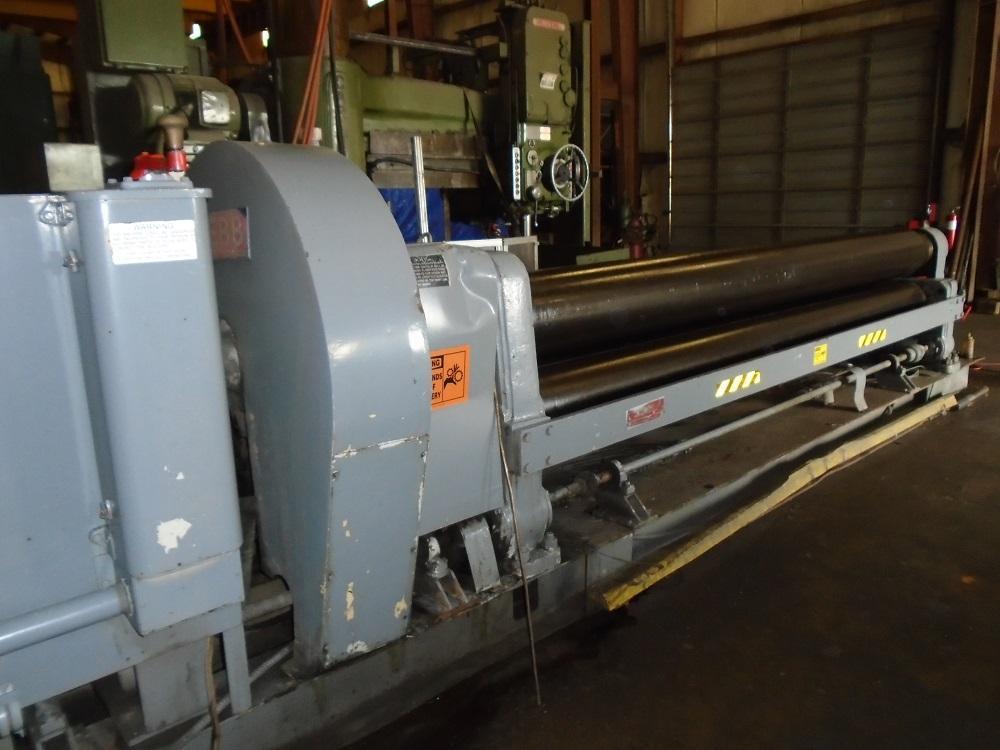

1/2" x 12' Webb Initial Pinch Power Roll
Brand
WEBB
Model
9L-1312 L.H.
Type
Rolls, Plate Bending (incld Pinch)
Stock #
0110506
Condition
Used
Year
1975
Location
Houston, Texas
United States
Specifications
Equipped With
1/2" x 12' Webb Initial Pinch Power Roll
Model: 9L-1312 L.H. Year 1975
S/N: 74142
Specifications:
Capacity: 1/2" (Mild Steel)
Max Forming Length: 12'
Roll Diameter: 13"
Rolling Speed: 6 to 12 FPM (vari)
Horsepower: 20
Equipped With:
Air Drop End
Power Front Pinch Roll Adjustment
Power Rear Roll Adjustment
Cone Rolling Attachment
Mechanical Indicator
Emergency Cable Stop
Dimensions: 267" x 78" x 68"
Weight: 29,500 lbs.
